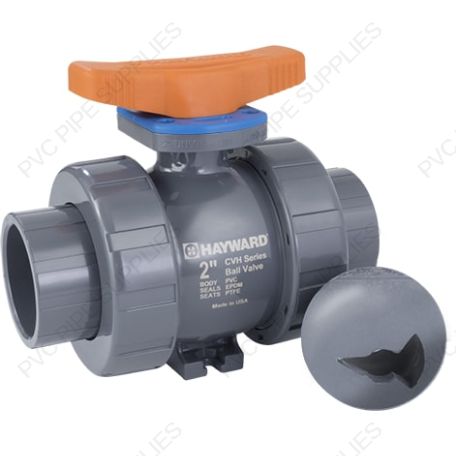

1/2" Hayward CVH Series Profile2™ True Union CPVC Ball Valve

SKU: CVH2050ASTE0A00
Color: Light Gray
1/2" Hayward CVH Series Profile2™ True Union CPVC Ball Valve

Details

Hayward's CVH Series Profile2™ with characterized ball for proportional flow configurations. Provides two linear flow curves – one for fast opening, one for slow opening. Slow opening shipped standard. Fast open on request. 1/4 inch - 2 inch rated @ 250PSI. Offered in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. NSF/ANSI61 and NSF/ANSI372 Listed. Available in Actuation Ready configuration.

Additional Information

MPN CVH2050ASTE0A00
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series CVH Series Profile2™
Manufacturer Warranty 2 Year Warranty
Valve Type True Union Ball Valve
Valve Size 1/2"
Valve Connection Type Socket and Threaded
Material CPVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material Reversible PTFE
Port Type Full
Max Pressure 250 PSI (17.2 bar) @ 70° F (21° C)
Carton Qty 12
UPC Code 0610377353878
Color Light Gray
Ratings & Standards NSF/ANSI 61
Installation Manual
Technical Data
Dimensions Image
