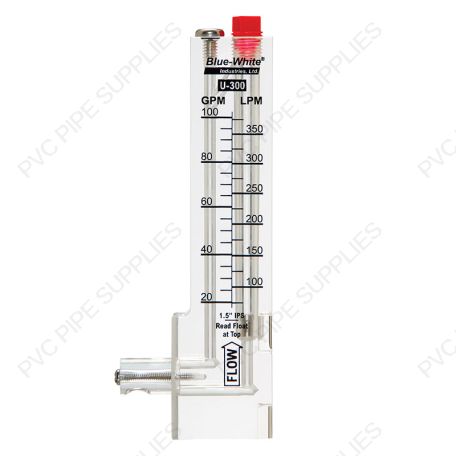

1-1/2" Vertical Down Flow Acrylic Flow Meter (20-100 GPM), D-30150P


Quick Overview

SKU: D-30150P



  • Model Variations:
    • F-300 = Horizontal flow
    • D-300 = Vertical down flow
    • U-300 = Vertical up flow
  • Well suited for closed pipe installations
  • Easy to read dual scale (GPM / LPM), screen printed on both sides of the meter body
  • Acceptable for outdoor installations (direct sunlight okay)
  • Pitot Tube (impact tube) design makes it easy to install on existing pipe
  • One piece, machined acrylic meter body, annealed for added strength and chemical resistance
  • Included SS clamps and gasket seal
  • Standard and Low Flow options available
  • For use on PVC or Copper Pipes (refer to literature)

Additional Information

SKU D-30150P
Manufacturer Blue White
Technical Data Blue White D-30150P Technical Data
Installation Manual Blue White D-30150P Installation Manual
Model Type Acrylic
Model Option Vertical Down Flow
Model # D-300
Application Liquid
Pipe Type Schedule 40
Size 1-1/2"
Flow Range 20-100 GPM
Body Material Acrylic
O-Ring Material Neoprene
Float Material 316 SS
Maximum PSI 75 PSI (5.17 bar) @ 70˚F (21˚C)
Maximum Temperature 190˚F / 88˚C @ 0 PSI
Accuarcy +/- 10% is a verified secure shopping site.
