2" Schedule 40 Pipe Paddlewheel Flow Meter with Saddle Mount Body (30-300 GPM), AOS120K4GM1

SKU: AOS120K4GM1
Color: Black


Details

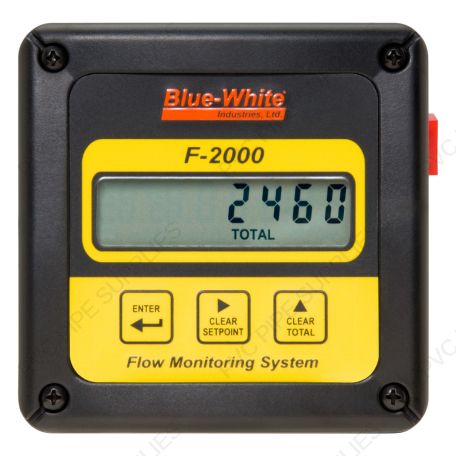

BW Digi-Meter® F-2000 Features:
  • Easy to read 8 digit LCD, up to 4 decimal positions.
  • Flow rate and Total flow display.
  • AC/DC transformer or battery operated (RT models only). 4 AA batteries.
  • Factory programmed with calibration certificate.
  • Field programmable via front panel touch pad.
  • Front panel security lockout.
  • Total reset function can be disabled.
  • Weather resistant ABS enclosure. NEMA 4X.
  • Note: LCD is not recommended for direct sunlight applications.
  • Panel mounting option available.
  • Custom calibration units available. Contact the factory.

4 model variations:
  • RT = Rate and Totalizer. Transformer or battery operated.
  • AO = 4-20mA, 0-10 VDC analog output, flow rate & totalizer. Transformer operated.
  • PC = Batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.
  • AP = Analog output, batch processing, flow rate alarm, proportional chemical metering, flow rate and totalizer. Transformer operated.

Additional Information

MPN AOS120K4GM1
Inventory Type DS
Manufacturer Blue White
Model Number AO
Series F-2000
Flow Meter Size Summary 2" Schedule 40 Pipe
Flow Meter Body Material PVDF
Flow Meter O-Ring Material Viton (Optional EP)
Material PVDF
Max Pressure 300 psig (20 bar) @ 70° F (21° C)
Maximum Temperature 200° F (93° C) @ 0 PSI
Flow Range 30-300 GPM
Color Black
Accuracy +/- 1%
Application State Liquid
