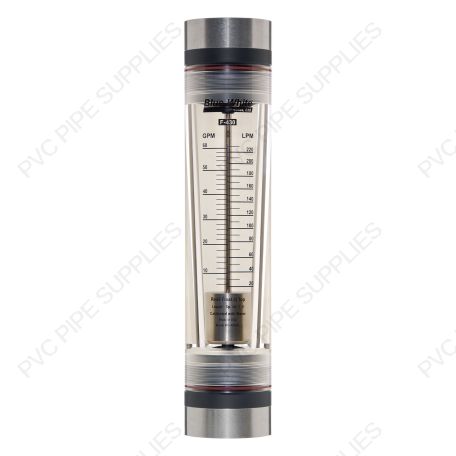

2" FPT Acrylic Flow Meter (4-40 GPM), F-43040LNS

$517.38

Quick Overview

SKU: F-43040LNS

OR

Details

  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.

Additional Information

SKU F-43040LNS
Manufacturer Blue White
Model Number F-430N
Size 2" FPT
Body Material Acrylic
O-Ring Material Viton (Optional EP)
Adapter Material PVC
Guide Rod Holder Material Polysulfone
Guide Rod Material 316 SS
Float Material 316 SS
Material Acrylic
Color Clear
Max Pressure 130 PSI (8.9 bar) @ 70°F (21°C)
Maximum Temperature 130° F (54° C) @ 0 psig
Flow Range 4-40 GPM
Accuracy +/- 5%
Application State Liquid
Installation Manual Blue White F-43040LNS Installation Manual
Technical Data Blue White F-43040LNS Technical Data
