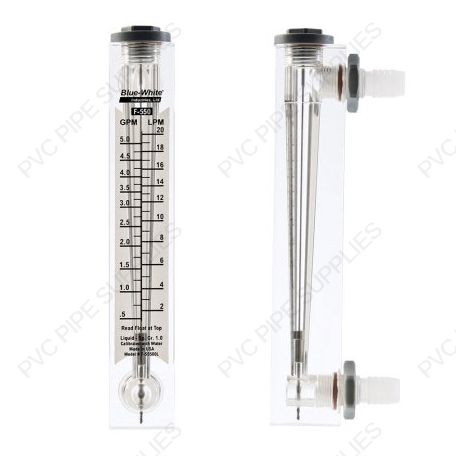

1" MPT Adjustable Acrylic Flow Meter (1-5 GPM), F-55005LA

$168.65

Quick Overview

SKU: F-55005LA

OR

Details

  • Durable, highly polished, one piece meter body.
  • Annealed for added strength and chemical resistance.
  • Acceptable for outdoor installations (acceptable in direct sunlight)
  • Bulkhead nuts attach directly to inside panel.
  • Optional adjustable flow control: needle-type adjustment valve.
  • Direct reading permanent scale.
  • White back reflector for easy reading.
  • 316 stainless, PTFE or Hastelloy floats and float guides.

Adapter Options:

  • 1/4″, 3/8″, 3/4″, 1″ Male NPT
  • 1/2″ Hose Barb

Additional Information

SKU F-55005LA
Manufacturer Blue White
Model Number F-550A
Flow Meter Size Summary 1" MPT
Flow Meter Body Material Acrylic
Flow Meter O-Ring Material Viton (Optional EP)
Flow Meter Adapter Material Polypropylene
Guide Rod Material 316 SSS
Flow Meter Float Material PTFE
Material Acrylic
Color Clear
Max Pressure 250 PSI (17.2 bar) @ 70° F (21° C)
Maximum Temperature 200° F (93° C) @ 0 PSI
Flow Range 1-5 GPM
Accuracy +/- 5%
Application State Liquid
Installation Manual Blue White F-55005LA Installation Manual
Technical Data Blue White F-55005LA Technical Data
