1-1/2" AcuFlow Flow Meter with CPVC Valve Body and Check Valve (10-80 GPM)

SKU: AF-15
AcuFlow™ for 1.5" schedule 40 pipe with GPM & LMP scale and check valve function


AcuFlow™ is a revolutionary, patented solution for accurate and reliable flow and velocity rate measurement in fresh, gray and potable water applications. Using a design based on "mass flow" principles, AcuFlow™ provides many benefits that include:
  • Ease of installation with zero to minimal straight pipe and no calibration required
  • Installation flexibility that allows orientation in any position, e.g., horizontal, vertical, or even upside-down
  • Long life without sticking floats or paddle wheels
  • 15 year design life, 3 year warranty
  • Combined Flow Meter and Check Valve for models AF-15, AF-2, and AF-25
  • User upgradeable to include Digital functionality (AF-D and AF-D-PM)
  • Manufactured in the USA

Additional Information

Inventory Type DS
Manufacturer H2flow Controls
Type Flow Meter
Schedule Schedule 40
Flow Meter Size Summary 1-1/2" Schedule 40 Pipe
Flow Meter Body Material CPVC
Flow Meter O-Ring Material Viton
Material CPVC
Max Pressure 125 PSI
Maximum Temperature 140° F (60° C)
Minimum Temperature 32° F (0° C)
Flow Range 10-80 GPM
Accuracy +/- 2%
Application State Liquid
Installation Manual

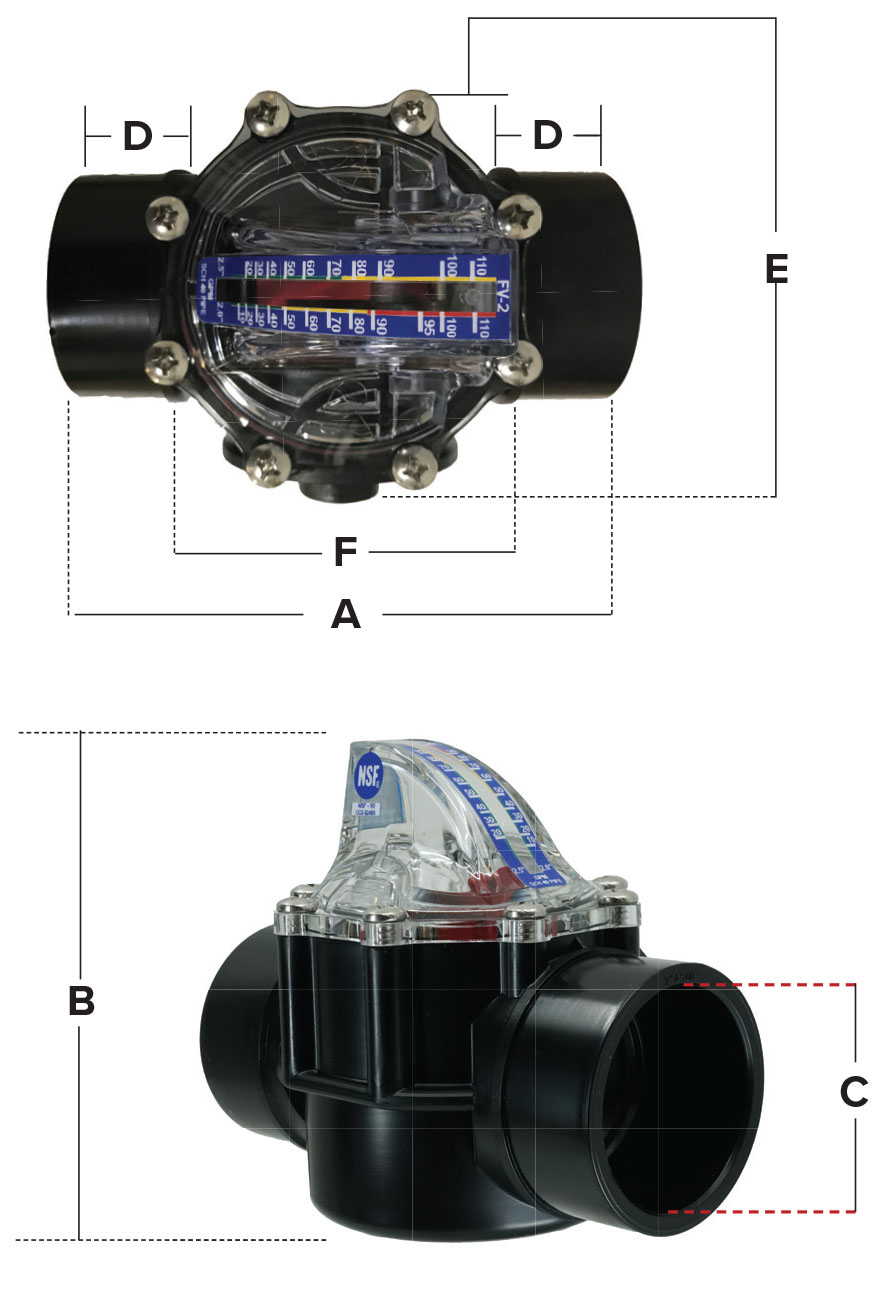

Dimensions Image
Dimensions <table> <tr> <td>A</td> <td>6.5"</td> </tr> <tr> <td>B</td> <td>5.875"</td> </tr> <tr> <td>C</td> <td>Schedule 40 - 1.5"</td> </tr> <tr> <td>D</td> <td>1.375"</td> </tr> <tr> <td>E</td> <td>4.63"</td> </tr> <tr> <td>F</td> <td>3.75"</td> </tr> </table>
