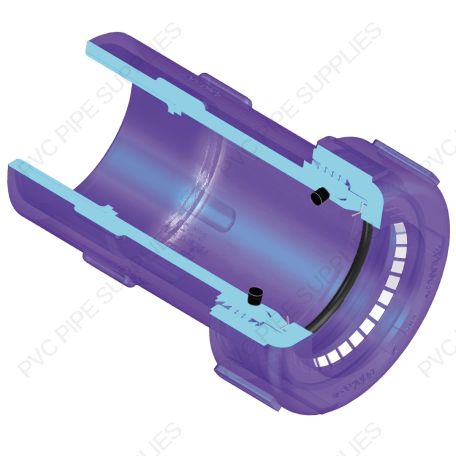

1-1/2" PVC Low Extractable GripLoc Transition Coupling EPDM O-Ring
Details
1-1/2" Spears PVC Low Extractable GripLoc Transition Coupling EPDM O-Ring, P092-015BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, highimpact strength, Low thermal conductivity
-Low maintenance
-Cost effective
WARNING: DO NOT INSERT FINGERS
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, highimpact strength, Low thermal conductivity
-Low maintenance
-Cost effective
WARNING: DO NOT INSERT FINGERS
Additional Information
| MPN | P092-015BL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Inventory Type | N25 | ||||||||
| Type | Coupling | ||||||||
| Fitting Type | Transition Coupling | ||||||||
| Style | GripLoc Transition Coupling | ||||||||
| Size | 1-1/2" | ||||||||
| Connection Type | Hub x GripLoc Compression | ||||||||
| Material | PVC | ||||||||
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) | ||||||||
| UPC Code | 054211099469 | ||||||||
| Color | Blue | ||||||||
| Technical Data | Spears P092-015BL Technical Data | ||||||||
| Dimensions Image | |||||||||
| Dimensions |
|
Documents

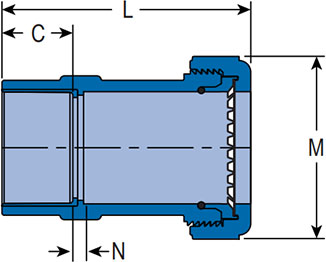

Dimensions
| C | 1-3/8" |
|---|---|
| L | 4-7/8" |
| M | 3-5/16" |
| N | 7/32" |
