1-1/4" PVC Low Extractable Tank Adapter FKM

SKU: 8170V-012BL
Color: Blue
$227.99
Email to a Friend

Details

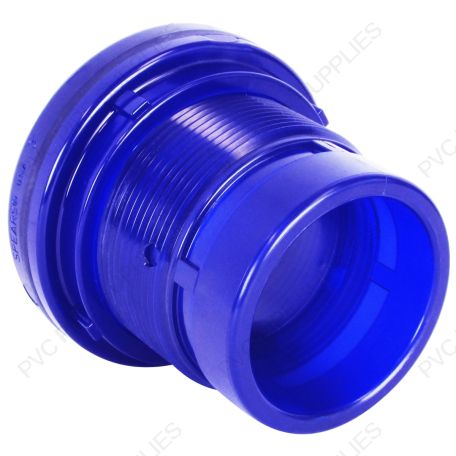

1-1/4" Spears PVC Low Extractable Tank Adapter FKM, 8170V-012BL

Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, highimpact strength, Low thermal conductivity
-Low maintenance
-Cost effective

Additional Information

MPN 8170V-012BL
Inventory Type N25
Type Tank Adapter
Fitting Type Tank Adapter
Schedule N/A
Size 1-1/4"
Connection Type Socket x Socket
Material PVC
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
UPC Code 054211452196
Color Blue
Technical Data PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond Spears 8170V-012BL Technical Data

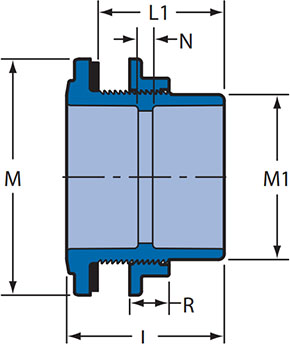

Dimensions Image
Dimensions
L 3-7/16"
L1 2-5/8"
M 3-1/8"
M1 2-5/16"
N 15/16"
R 5/8"
