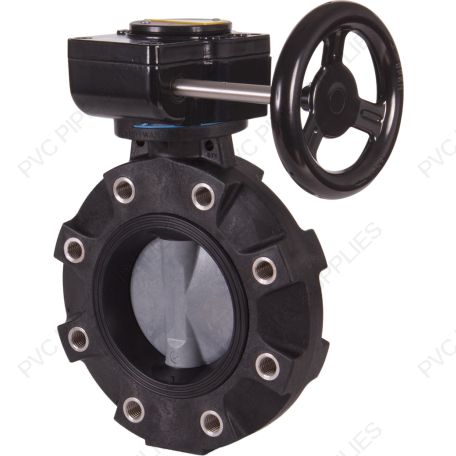

12" Hayward BYV Series CPVC Butterfly Lugged Valve Gear, FPM

SKU: BYV22120A0VGI00
Color: Light Gray
12" Hayward BYV Series CPVC Butterfly Lugged Valve Gear, FPM

Details

Hayward's BYV Series incorporates the most advanced thermoplastic design and construction for butterfly valves in the industry today. Available in multiple thermoplastic materials from sizes 2? through 12” / DN50 - 300, the BYV Series has an extremely robust 1-piece body construction while lighter weight than metal valves of equal size.

The revolutionary hand lever features a 72 spline interlock mechanism allowing for 19 stopping positions at every 5°. The engineered hand lever material incorporates an UV inhibitor for enhanced performance in outdoor applications. The BYV also features reinforced lug holes and can be ordered with overmolded 316 stainless steel lugs for dead end service or isolation needs. The BYV Series is available in ANSI150 and DIN/EN PN10 flange patterns, with a pressure rating of 150 PSI / 10 Bar at 70°F non-shock across all sizes and materials.

Additional options include overmolded or field installable 316 stainless steel lugs, gear operators, pneumatic or electric actuators, manual limit switches, stem extensions, 2? square operating nut and chain operator for gear boxes.

Additional Information

MPN BYV22120A0VGI00
Inventory Type DS
Manufacturer Hayward
Type Butterfly Valve
Series BYV Series
Manufacturer Warranty 2 Year Warranty
Valve Type Butterfly Lugged Valve Gear
Valve Size 12"
Material CPVC
Disc Material CPVC
Seal Material FPM
Liner Material Viton
Stem Material 316 Stainless Steel
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377258456
Color Light Gray
Ratings & Standards NSF Approved
