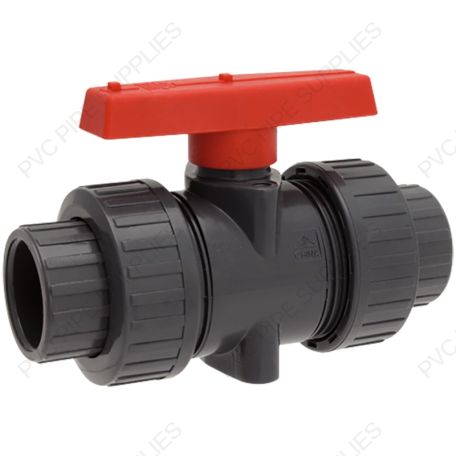

1/2" Hayward TBB Series True Union PVC Ball Valve

SKU: TBB1005CPEG
Color: Gray
1/2" Hayward TBB Series True Union PVC Ball Valve w/ Socket and Threaded ends, EPDM O-rings

Details

TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF. O-rings are FPM or EPDM. Up to 2 inch sizes have socket and threaded end connections. All seats are PTFE.

Additional Information

MPN TBB1005CPEG
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series TBB Series
Valve Type True Union Ball Valve
Valve Size 1/2"
Valve Connection Type Socket and Threaded
Material PVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material PTFE
Port Type Full
Max Pressure 225 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 48
UPC Code 0610377091398
Color Gray
