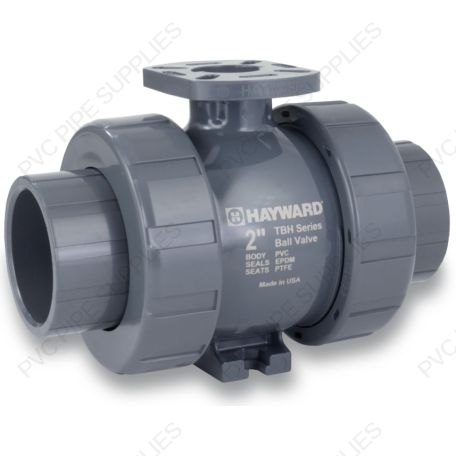

1/2" Hayward Actuator Ready TBH-Z Series True Union PVC Ball Valve

Color: Gray
1/2" Hayward Actuator Ready TBH-Z Series True Union PVC Ball Valve


Hayward's TBH-Z Series (Z-Ball) true union ball valves have a drilled ball to vent gases for sodium hypochlorite service. Available in PVC or CPVC materials with FPM o-rings only and PTFE seats. Sizes are 1/2" to 2" with IPS or DIN/EN socket, threaded and flanged end connections.

All valves are assembled with silicone free lubricant. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – available on all sizes. Fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock across all sizes and materials. Full 250 PSI / PN16 Rating, Non-Shock at 70°F / 23°C

Additional Information

Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series Actuator Ready TBH "Z-Ball" Series
Manufacturer Warranty 2 Year Warranty
Valve Type True Union Ball Valve
Valve Size 1/2"
Valve Connection Type Socket and Threaded
Material PVC
Seal Type Double O-Ring Stem
Seal Material FPM
Seat Material Reversible PTFE
Max Pressure 250 PSI (17.2 bar) @ 70° F (21° C)
Carton Qty 12
UPC Code 0610377354530
Color Gray
Ratings & Standards NSF/ANSI 61
