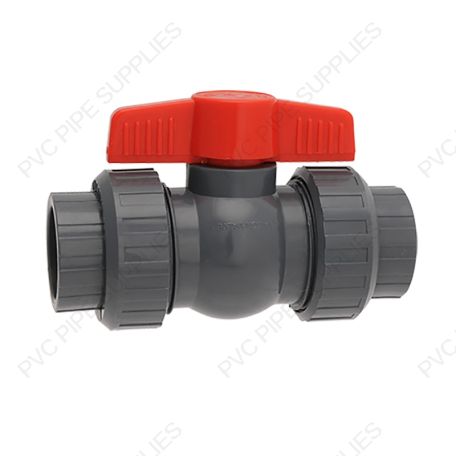

1" Hayward QTA Series True Union Compact PVC Ball Valve
Main image
Click to view image in fullscreen
![]()
SKU:
QTA1010CSEG
Color:
Gray
1" Hayward QTA Series True Union Compact PVC Ball Valve w/ Socket and Threaded ends, EPDM O-rings
$22.99
Details
QTA Series compact ball valves are available in gray or white PVC. O-rings are EPDM and seats are Santoprene® (TPV) only. All QTA Series have socket and threaded end connections.
1" Hayward QTA Series True Union Compact PVC Ball Valve w/ Socket and Threaded ends, EPDM O-rings
Additional Information
| MPN | QTA1010CSEG |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | True Union |
| Series | QTA Series |
| Valve Type | True Union Compact Ball Valve |
| Valve Size | 1" |
| Valve Connection Type | Socket and Threaded |
| Material | PVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | EPDM |
| Seat Material | Santoprene (TPV) |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 50 |
| UPC Code | 0610377095174 |
| Color | Gray |
| Technical Data | Hayward QTA1010CSEG Technical Data |
