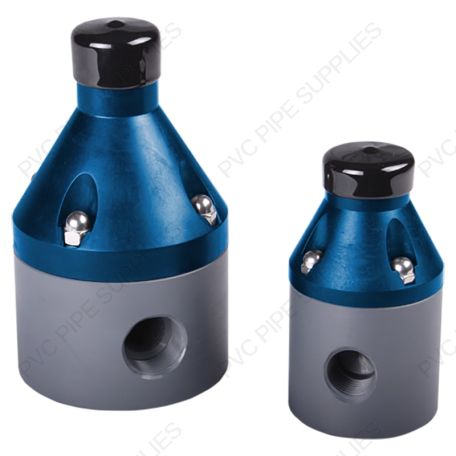

1" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
Main image
Click to view image in fullscreen
![]()
SKU:
PBV3100TPE1
Color:
Gray
1" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
$749.99
Details
All thermoplastic diaphragm Back Pressure Valve for chemical feed systems, applies back pressure to a metering pump to prevent siphoning and eliminates varying dosage rates resulting from fluctuating downstream pressure. All valves are preset for 50 psi, but are field adjustable via the adjustment screw.
1" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
Additional Information
| MPN | PBV3100TPE1 |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Diaphragm Valve |
| Style | Back Pressure |
| Series | PBV Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | Diaphragm Back Pressure Valve |
| Valve Size | 1" |
| Valve Connection Type | FPT x Threaded |
| Diaphragm Material | PTFE/EPDM |
| Material | PP - Polypropylene |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377303255 |
| Color | Gray |
| Installation Manual | Hayward PBV3100TPE1 Installation Manual |
| Technical Data | Hayward PBV3100TPE1 Technical Data |
