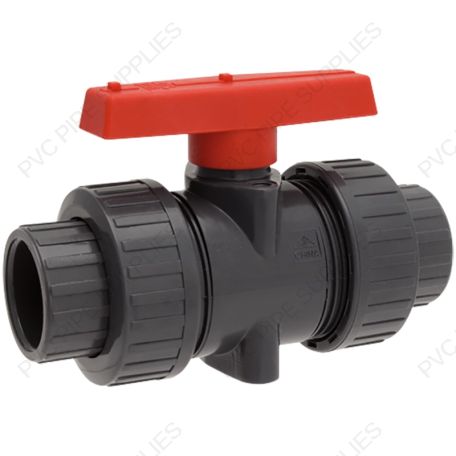

1" Hayward TBB Series True Union CPVC Ball Valve
Main image
Click to view image in fullscreen
![]()
SKU:
TBB2010CPFG
Color:
Light Gray
1" Hayward TBB Series True Union CPVC Ball Valve w/ Socket and Threaded ends, FPM O-rings
$122.99
Details
TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF. O-rings are FPM or EPDM. Up to 2 inch sizes have socket and threaded end connections. All seats are PTFE.
1" Hayward TBB Series True Union CPVC Ball Valve w/ Socket and Threaded ends, FPM O-rings
Additional Information
| MPN | TBB2010CPFG |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | True Union |
| Series | TBB Series |
| Valve Type | True Union Ball Valve |
| Valve Size | 1" |
| Valve Connection Type | Socket and Threaded |
| Material | CPVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | FPM |
| Seat Material | PTFE |
| Port Type | Full |
| Max Pressure | 225 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 24 |
| UPC Code | 0610377092159 |
| Color | Light Gray |
| Installation Manual | Hayward TBB2010CPFG Installation Manual |
| Technical Data | Hayward TBB2010CPFG Technical Data |
