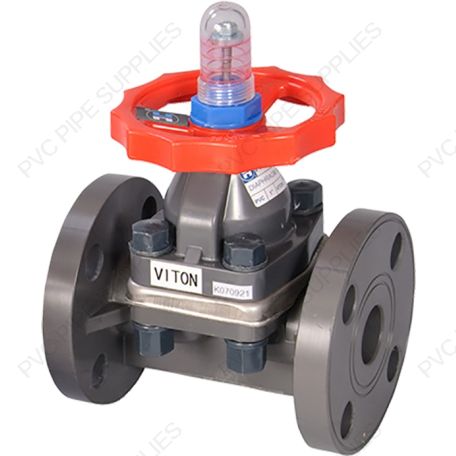

2-1/2" Hayward DAB Series PVC Diaphragm Valve w/Flanged ends, O-rings

SKU: DAB1025FPK
Color: Gray
2-1/2" Hayward DAB Series PVC Diaphragm Valve w/Flanged ends, O-rings

Details

The DAB Series Diaphragm Valves are available in sizes 1/2 inch to 6 inch, with PVC, CPVC, PP and PVDF materials. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visable beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic or electric actuation.

Additional Information

MPN DAB1025FPK
Inventory Type DS
Manufacturer Hayward
Type Flow Control Valve
Series DAB Series
Valve Type Diaphragm Back Pressure Valve
Valve Size 2-1/2"
Valve Connection Type Flanged
Diaphragm Material PTFE
Material PVC
Seal Type Double O-Ring Stem
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377085670
Color Gray
Installation Manual
Technical Data
