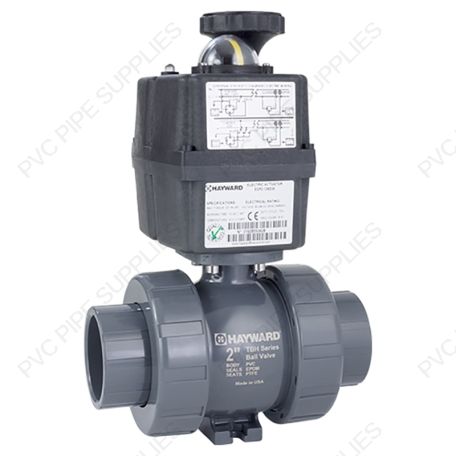

2" Hayward ECP Series Actuated True Union PVC Ball Valve
Main image
Click to view image in fullscreen
![]()
SKU:
ECPTBH120STE
Color:
Gray
2" Hayward ECP Series Actuated True Union PVC Ball Valve w/ Socket and Threaded ends, EPDM O-rings
$959.99
Details
High performance ECP Series 120/230 VAC electric actuator with four auxiliary limit switches, mounted to a TBH Series true union ball valve. Valve has socket and threaded end connections.
- Direct mount to actuators with ISO 5211 mounting pads
- Consistent valve torque due to System2™ Sealing Technology
- Actuator Ready valve priced lower than valve with handle and lock plate
- ISO 5211 couplings available in 9mm, 11mm and 14mm
2" Hayward ECP Series Actuated True Union PVC Ball Valve w/ Socket and Threaded ends, EPDM O-rings
Additional Information
| MPN | ECPTBH120STE |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | True Union |
| Series | ECP Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | True Union Ball Valve |
| Valve Size | 2" |
| Valve Connection Type | Socket and Threaded |
| Material | PVC |
| Seal Type | Double O-Ring Stem |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Actuation Type | Actuated |
| Actuator Voltage | 120/230 VAC |
| Actuator Cycle Time | 2.5 Second, 90° |
| Carton Qty | 1 |
| UPC Code | 0610377357678 |
| Color | Gray |
| Ratings & Standards | NSF/ANSI 61 |
| Actuator Ratings & Standards | UL/CSA Listed Motor |
| Installation Manual | Hayward ECPTBH120STE Installation Manual |
| Technical Data | Hayward ECPTBH120STE Technical Data |
