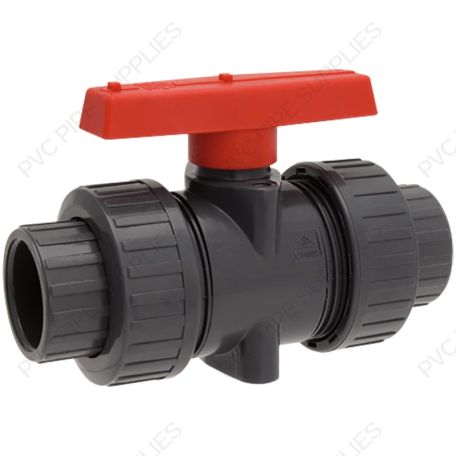

3/4" Hayward TBB Series True Union CPVC Ball Valve

SKU: TBB2007FPEG
Color: Light Gray
3/4" Hayward TBB Series True Union CPVC Ball Valve w/ Flanged ends, EPDM O-rings
  $132.99
Email to a Friend

Details

TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF. O-rings are FPM or EPDM. Up to 2 inch sizes have socket and threaded end connections. All seats are PTFE.

3/4" Hayward TBB Series True Union CPVC Ball Valve w/ Flanged ends, EPDM O-rings

Additional Information

MPN TBB2007FPEG
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series TBB Series
Valve Type True Union Ball Valve
Valve Size 3/4"
Valve Connection Type Flanged
Material CPVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material PTFE
Port Type Full
Max Pressure 225 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 36
UPC Code 0610377093118
Color Light Gray
Installation Manual PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond Hayward TBB2007FPEG Installation Manual
Technical Data PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond Hayward TBB2007FPEG Technical Data
