3/4" Hayward Actuator Ready CVH Series Profile2™ True Union CPVC Ball Valve

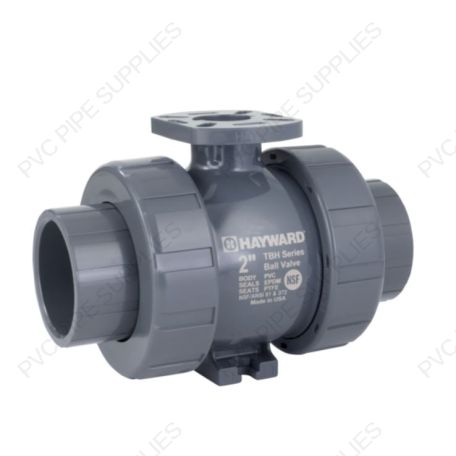

Main image
Click to view image in fullscreen
calcActive())">
SKU:
CVH2075ASTEKA00
Color:
Light Gray
3/4" Hayward Actuator Ready CVH Series Profile2â„¢ True Union CPVC Ball Valve
$215.99
Details
Hayward's CVH Series Profile2™ with characterized ball for proportional flow configurations. Provides two linear flow curves – one for fast opening, one for slow opening. Slow opening shipped standard. Fast open on request. 1/4 inch - 2 inch rated @ 250PSI. Offered in PVC and CPVC. O-rings are FPM or EPDM and seats are PTFE. NSF/ANSI61 and NSF/ANSI372 Listed.
Additional Information
MPN | CVH2075ASTEKA00 |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Ball Valve |
Style | True Union |
Series | Actuator Ready CVH Series Profile2™ |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | True Union Ball Valve |
Valve Size | 3/4" |
Valve Connection Type | Socket and Threaded |
Material | CPVC |
Seal Type | Double O-Ring Stem |
Seal Material | EPDM |
Seat Material | Reversible PTFE |
Port Type | Full |
Max Pressure | 250 PSI (17.2 bar) @ 70° F (21° C) |
Carton Qty | 12 |
UPC Code | 0610377354219 |
Color | Light Gray |
Ratings & Standards | NSF/ANSI 61 |
Installation Manual | Hayward CVH2075ASTEKA00 Installation Manual |
Technical Data | Hayward CVH2075ASTEKA00 Technical Data |
Dimensions Image |
