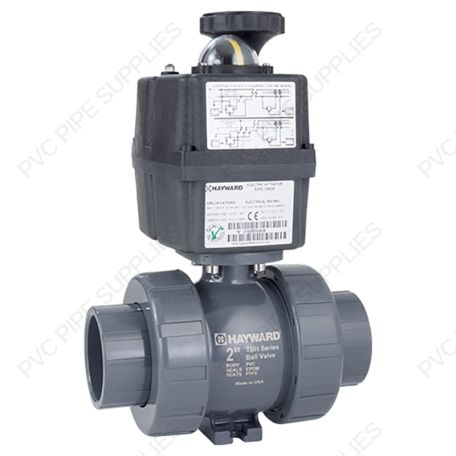

3/4" Hayward ECP Series Actuated True Union CPVC Ball Valve

SKU: ECPTBH207STV
Color: Light Gray
3/4" Hayward ECP Series Actuated True Union CPVC Ball Valve w/ Socket and Threaded ends, FPM O-rings

Details

High performance ECP Series 120/230 VAC electric actuator with four auxiliary limit switches, mounted to a TBH Series true union ball valve. Valve has socket and threaded end connections.

  • Direct mount to actuators with ISO 5211 mounting pads
  • Consistent valve torque due to System2™ Sealing Technology
  • Actuator Ready valve priced lower than valve with handle and lock plate
  • ISO 5211 couplings available in 9mm, 11mm and 14mm

Additional Information

MPN ECPTBH207STV
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series ECP Series
Manufacturer Warranty 2 Year Warranty
Valve Type True Union Ball Valve
Valve Size 3/4"
Valve Connection Type Socket and Threaded
Material CPVC
Seal Type Double O-Ring Stem
Seal Material FPM
Seat Material PTFE
Actuation Type Actuated
Actuator Voltage 120/230 VAC
Actuator Cycle Time 2.5 Second, 90°
Carton Qty 1
UPC Code 0610377357821
Color Light Gray
Ratings & Standards NSF/ANSI 61
Actuator Ratings & Standards UL/CSA Listed Motor
