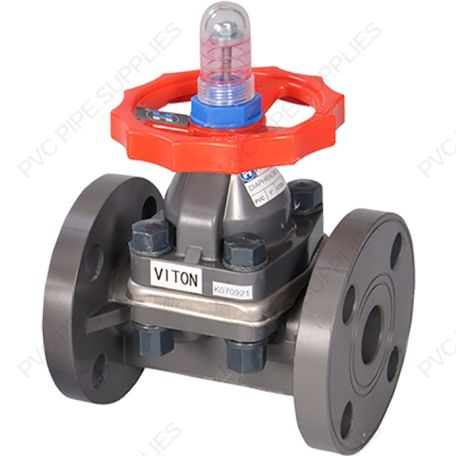

3" Hayward DAB Series CPVC Diaphragm Valve w/Flanged ends, O-rings

$1,199.99

Quick Overview

SKU: DAB2030FEK

3" Hayward DAB Series CPVC Diaphragm Valve w/Flanged ends, O-rings
OR

Details

The DAB Series Diaphragm Valves are available in sizes 1/2 inch to 6 inch, with PVC, CPVC, PP and PVDF materials. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visable beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic or electric actuation.

Additional Information

SKU DAB2030FEK
Manufacturer Hayward
Type Flow Control Valve
Series DAB Series
Valve Type Diaphragm Back Pressure Valve
Valve Size 3"
Valve Connection Type Flanged
Diaphragm Material EPDM
Material CPVC
Seal Type Double O-Ring Stem
Color Light Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377086080
Installation Manual Hayward DAB2030FEK Installation Manual
Technical Data Hayward DAB2030FEK Technical Data
