3" PVC Low Extractable Tee Socket x Socket x Socket
Details

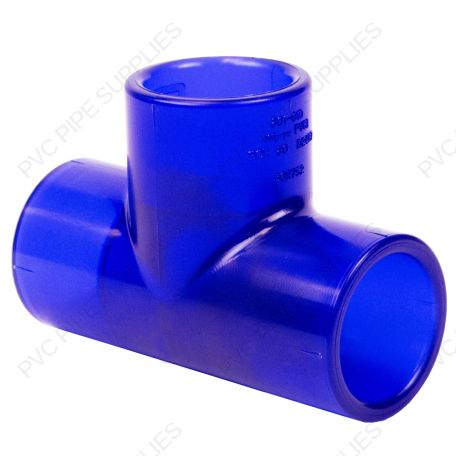

3" Spears PVC Low Extractable Tee Socket x Socket x Socket, 801-030BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, highimpact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, highimpact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Additional Information
| MPN | 801-030BL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Inventory Type | N25 | ||||||||
| Type | Tee | ||||||||
| Fitting Type | Tee | ||||||||
| Schedule | Schedule 80 | ||||||||
| Size | 3" | ||||||||
| Connection Type | Socket x Socket x Socket | ||||||||
| Material | PVC | ||||||||
| UPC Code | 054211837061 | ||||||||
| Color | Blue | ||||||||
| Technical Data | Spears 801-030BL Technical Data | ||||||||
| Dimensions Image | |||||||||
| Dimensions |
|
Documents

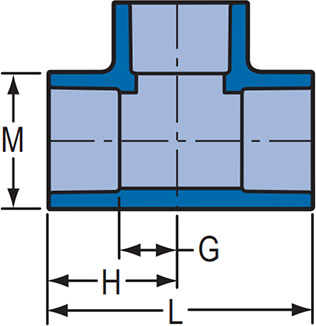

Dimensions
| G | 2-1/16" |
|---|---|
| H | 3-31/32" |
| L | 7-15/16" |
| M | 4-7/32" |
