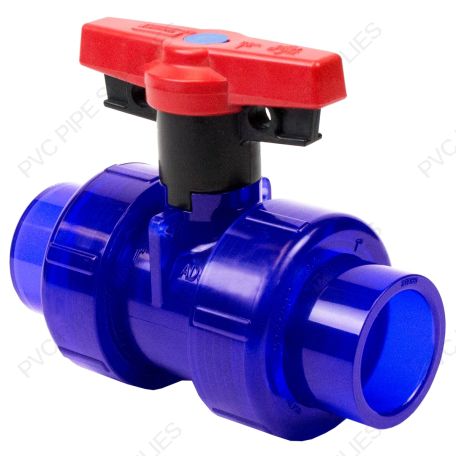

4" Spears PVC Low Extractable True Union Industrial Ball Valve w/Handle Lockout, Socket, FKM O-Ring
Main image
Click to view image in fullscreen
![]()
Details
4" Spears PVC Low Extractable True Union Industrial Ball Valve, FKM O-Ring, 1832-040BL
Additional Information
| MPN | 1832-040BL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Spears | ||||||||||||
| Type | Ball Valve | ||||||||||||
| Style | True Union | ||||||||||||
| Valve Type | True Union Industrial Ball Valve | ||||||||||||
| Valve Size | 4" | ||||||||||||
| Valve Connection Type | Socket | ||||||||||||
| Material | PVC LE | ||||||||||||
| Max Pressure | 235 PSI (10.3 bar) @ 70˚F (21˚C) | ||||||||||||
| UPC Code | 54211074053 | ||||||||||||
| Color | Blue | ||||||||||||
| Dimensions Image | |||||||||||||
| Dimensions |
|
Dimensions
| A | 7-5/8 |
|---|---|
| B | 7-5/16 |
| C | 11-7/8 |
| D | 6-3/4 |
| E | 9-3/16 |
| Cv Values | 2865 |
