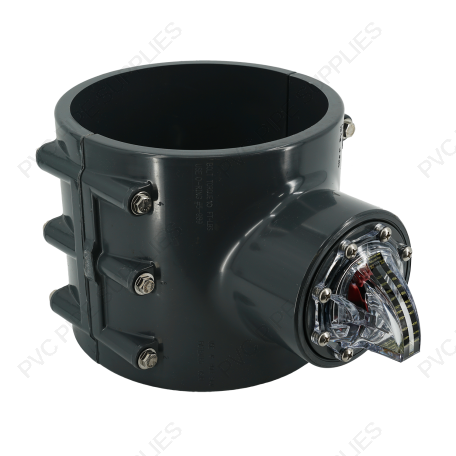

8" AcuFlow Flow Meter with CPVC Saddle Clamp (600-1800 GPM)

AcuFlow™ for 8" schedule 80 pipe with GPM & LMP scale and saddle clamp. Includes AcuFlow LCD Digital display


AcuFlow™ is a revolutionary, patented solution for accurate and reliable flow and velocity rate measurement in fresh, gray and potable water applications. Using a design based on "mass flow" principles, AcuFlow™ provides many benefits that include:
  • Ease of installation with zero to minimal straight pipe and no calibration required
  • Installation flexibility that allows orientation in any position, e.g., horizontal, vertical, or even upside-down
  • Long life without sticking floats or paddle wheels
  • 15 year design life, 3 year warranty
  • Manufactured in the USA

Additional Information

Inventory Type DS
Manufacturer H2flow Controls
Type Flow Meter
Schedule Schedule 80
Flow Meter Size Summary 8" Schedule 80 Pipe
Flow Meter Body Material CPVC
Flow Meter O-Ring Material Viton
Material CPVC
Max Pressure 125 PSI
Maximum Temperature 140° F (60° C)
Minimum Temperature 32° F (0° C)
Flow Range 600-1800 GPM
Accuracy +/- 2%
Application State Liquid
Installation Manual

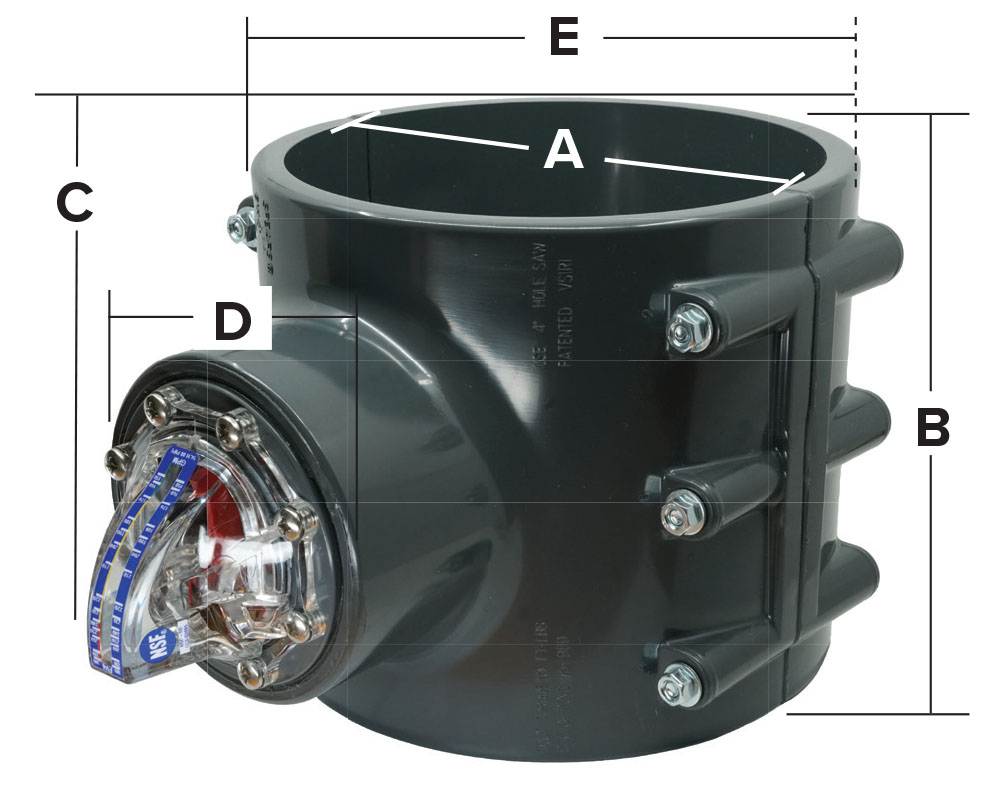

Dimensions Image
Dimensions <table> <tr> <td>A</td> <td>Schedule 80 - 8.65"</td> </tr> <tr> <td>B</td> <td>8.59"</td> </tr> <tr> <td>C</td> <td>14.37"</td> </tr> <tr> <td>D</td> <td>5.24"</td> </tr> <tr> <td>E</td> <td>9.53"</td> </tr> </table>
