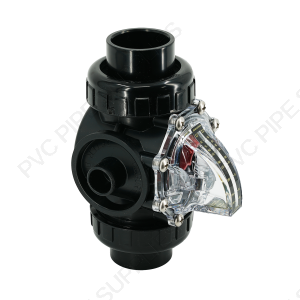

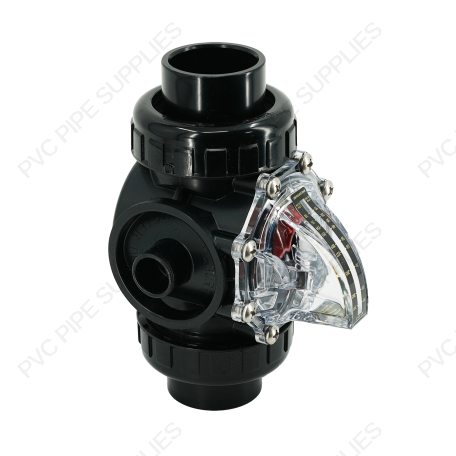

1-1/2" AcuFlow Flow Meter with Union Valve Body and Check Valve (10-90GPM)
Details
AcuFlow™ is a revolutionary, patented solution for accurate and reliable flow and velocity rate measurement in fresh, gray and potable water applications. Using a design based on "mass flow" principles, AcuFlow™ provides many benefits that include:
- Ease of installation with zero to minimal straight pipe and no calibration required
- Installation flexibility that allows orientation in any position, e.g., horizontal, vertical, or even upside-down
- Long life without sticking floats or paddle wheels
- 15 year design life, 3 year warranty
- User upgradeable to include Digital functionality (AF-D and AF-D-PM)
- Manufactured in the USA
Additional Information
| MPN | AF-15-U |
|---|---|
| Inventory Type | DS |
| Manufacturer | H2flow Controls |
| Schedule | Schedule 40 |
| Flow Meter Size Summary | 1-1/2" Schedule 40 Pipe |
| Flow Meter Body Material | CPVC |
| Flow Meter O-Ring Material | Viton |
| Material | CPVC |
| Max Pressure | 125 PSI |
| Maximum Temperature | 140° F (60° C) |
| Minimum Temperature | 32° F (0° C) |
| Flow Range | 10-90 GPM |
| Accuracy | +/- 2% |
| Application State | Liquid |
| Brochure | H2flow Controls AF-15-U Brochure |
| Installation Manual | H2flow Controls AF-15-U Manual |
| Dimensions Image | |
| Dimensions | <table> <tr> <td>A</td> <td>8.24"</td> </tr> <tr> <td>B</td> <td>5.5"</td> </tr> <tr> <td>C</td> <td>Schedule 40 - 1.5" (Slip)</td> </tr> <tr> <td>D</td> <td>4.63"</td> </tr> <tr> <td>E</td> <td>5.81"</td> </tr> </table> |
