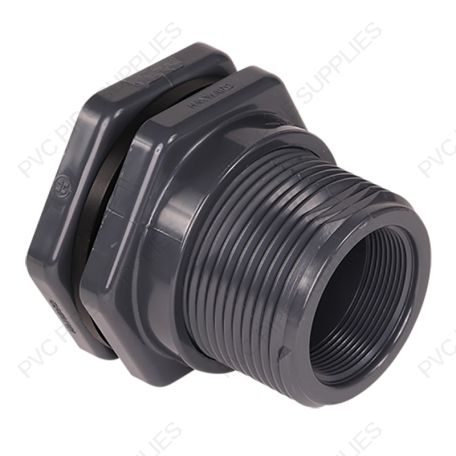

Hayward’s BFA Series Industrial Bulkhead Fittings (Tank Adapters) easily permit safe, quick pipe connections to be made to plastic, metal or plastic tanks. Simply cut the proper size opening in the tank, slide the body of the fitting through it, and then just tighten the nut. The fitting is now ready to accept the piping connection.
BFA Series bulkhead fittings offer a longer shaft for thicker tank walls and easy one-person installation. BFA Series are offered in PVC, CPVC and PP. Gaskets are FPM or EPDM. Large flange option is available.
|Connection Type||Threaded x Threaded|
|Max Pressure||150 PSI (10.3 bar) @ 70˚F (21˚C)|
|Installation Manual||Hayward BFA1015TFS Installation Manual|
|Technical Data||Hayward BFA1015TFS Technical Data|
|Dimensions Image||Hayward BFA1015TFS Drawing|
