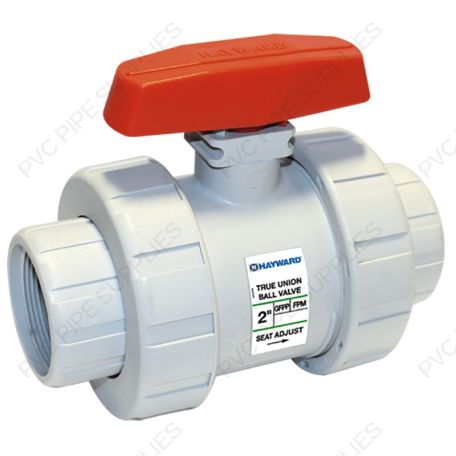

1-1/4" Hayward TB Series True Union GFPP Ball Valve w/Threaded ends
Main image
Click to view image in fullscreen
calcActive())">
SKU:
TB4P125TE
Color:
White
1-1/4" Hayward TB Series True Union GFPP Ball Valve w/ Threaded ends, EPDM O-rings
$141.99
Details
TB Series true union ball valves are offered in PVC, CPVC and the new Platinum GFPP. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. A trigger style lockout handle is an option. All valves are assembled with silicone free lubricant.
Additional Information
MPN | TB4P125TE |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Ball Valve |
Style | True Union |
Series | TB Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | True Union Ball Valve |
Valve Size | 1-1/4" |
Valve Connection Type | Threaded |
Material | GFPP |
Seal Type | Double O-Ring Stem |
Seal Material | EPDM |
Seat Material | Reversible PTFE |
Port Type | Full |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 1 |
UPC Code | 6010377196819 |
Color | White |
Installation Manual | Hayward TB4P125TE Installation Manual |
Technical Data | Hayward TB4P125TE Technical Data |
