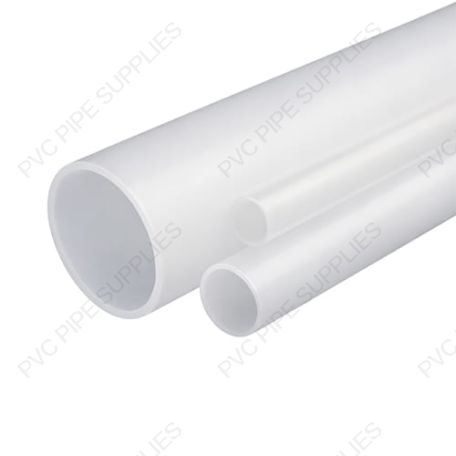

1/2" x 20' Schedule 80 Natural PVDF Pipe
Main image
Click to view image in fullscreen
calcActive())">
Details
KYNAR polyvinylidene fluoride is a tough engineering thermoplastic that offers a balance of performance properties. It has the characteristic stability of fluoropolymers to resist harsh thermal, chemical and ultraviolet environments. KYNAR resins, in addition to being readily melt-processed by standard methods, can be dissolved in polar solvents, such as organic esters and amines, for coating applications.
Additional Information
MPN | P0050NPVDF |
---|---|
Inventory Type | N1000 |
Manufacturer | Nibco |
Type | Schedule 80 Pipe |
Schedule | Schedule 80 |
Size (in.) | 1/2 |
Weight per Foot (lbs. / ft.) | 0.226 |
Length (ft.) | 20 |
Wall Thickness (in.) | 0.147 |
Inner Diameter (in.) | 0.5 |
Outer Diamter (in.) | 0.84 |
Material | KYNAR 740 PVDF |
Color | White |
Technical Data | PVDF Pipe Technical Specifications |
