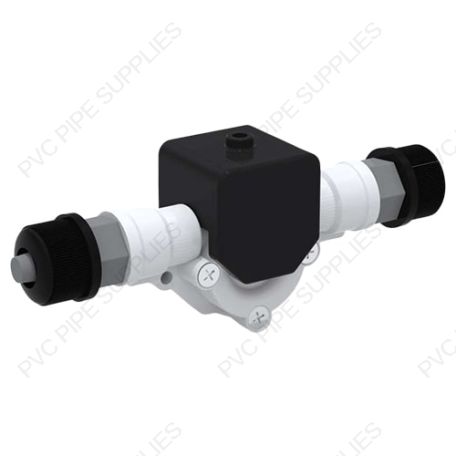

1/4" FTP Micro-Flo Paddlewheel Flow Meter with Flow Rate and Totalizing (4.7-47.5 GPH), FV1-401-7V

Micro-Flo Analog Output Capabilities:

• High accuracy digital paddlewheel technology.
• Flow rates from 30 to 7000 milliliters per minute.
• 20-4mA and 10-0VDC inverted logic capabilities.
• AC/DC transformer.
• Factory programmed with calibration certificate.
• Field programmable via front panel touch pad.
• Front panel security lockout.
• Total reset function can be disabled.
• Remote mount display, 6ft of cable provided.
• Weather resistant ABS enclosure. NEMA 4X.
• Custom calibration units available. Contact the factory.

Paddlewheel and Sensor Features:

• Infra-red light sensor.
• Opaque PVDF chemical resistant lens.
• 5V DC digital square wave (3-wire).
• 3-wire shielded cable, 6ft.

Model variation:

• FV = No display. Sensor only.

No display. Sensor only.
