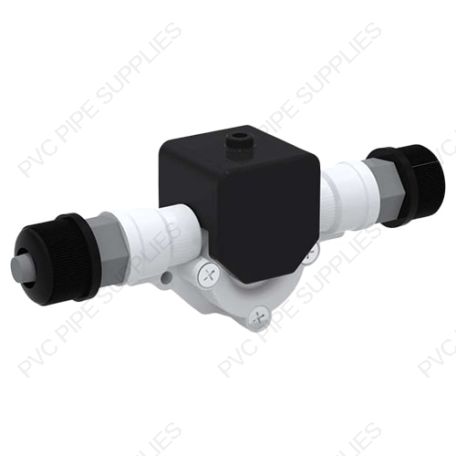

1/8" FTP Micro-Flo Paddlewheel Flow Meter with Flow Rate and Totalizing (1.6-15.8 GPH), FV1-201-5V

SKU: FV1-201-5V
Color: Black

No display. Sensor only.

Details

Micro-Flo Analog Output Capabilities:

  • High accuracy digital paddlewheel technology.
  • Flow rates from 30 to 7000 milliliters per minute.
  • 20-4mA and 10-0VDC inverted logic capabilities.
  • AC/DC transformer.
  • Factory programmed with calibration certificate.
  • Field programmable via front panel touch pad.
  • Front panel security lockout.
  • Total reset function can be disabled.
  • Remote mount display, 6ft of cable provided.
  • Weather resistant ABS enclosure. NEMA 4X.
  • Custom calibration units available. Contact the factory.



Paddlewheel and Sensor Features:

  • Infra-red light sensor.
  • Opaque PVDF chemical resistant lens.
  • 5V DC digital square wave (3-wire).
  • 3-wire shielded cable, 6ft.



Model variation:

  • FV = No display. Sensor only.

Additional Information

MPN FV1-201-5V
Inventory Type DS
Manufacturer Blue White
Model Number FV
Series Micro-Flo
Flow Meter Size Summary 1/8" FTP
Flow Meter Body Material PVDF
Flow Meter O-Ring Material Viton (Optional EP)
Flow Meter Connector Material PVC
Material PVDF
Max Pressure 130 PSI (8.9 bar) @ 70°F (21°C)
Maximum Temperature 130° F (54° C) @ 0 psig
Flow Range 1.6-15.8 GPH
Color Black
Accuracy +/- 6%
Application State Liquid
