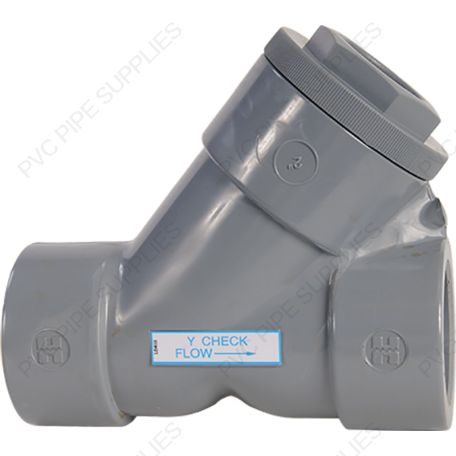

1/2" Hayward YC Series CPVC Y-Check Valve w/Socket ends, FPM O-rings
Main image
Click to view image in fullscreen

![]()

calcActive())">
SKU:
YC20050S
Color:
Light Gray
1/2" Hayward YC Series CPVC Y-Check Valve w/ Socket ends, FPM O-rings
$309.99
Details
YC Series Y-check valves are offered in PVC and CPVC. O-rings are FPM standard but EPDM is available. All sizes are either socket, threaded or flanged body style. True union socket or threaded end connections are available. For spring-loaded Y-check valves, see the SLC Series. All valves are assembled with silicone free lubricant.
1/2" Hayward YC Series CPVC Y-Check Valve w/ Socket ends, FPM O-rings
Additional Information
MPN | YC20050S |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Check Valve |
Style | Y |
Series | YC Series |
Valve Type | Check Valve |
Valve Size | 1/2" |
Valve Connection Type | Socket |
Material | CPVC |
Seal Type | Double O-Ring Stem |
Seal Material | FPM |
Flow Design | Full |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 24 |
UPC Code | 0610377100908 |
Color | Light Gray |
Installation Manual | Hayward YC20050S Installation Manual |
Technical Data | Hayward YC20050S Technical Data |
Dimensions Image |
