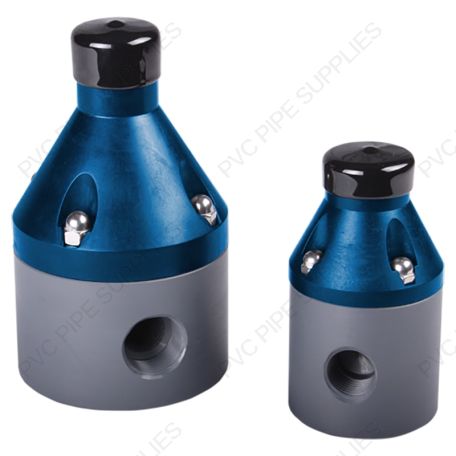

1/2" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
Main image
Click to view image in fullscreen
![]()
SKU:
PBV3050TPE1
Color:
Gray
1/2" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
$289.99
Details
All thermoplastic diaphragm Back Pressure Valve for chemical feed systems, applies back pressure to a metering pump to prevent siphoning and eliminates varying dosage rates resulting from fluctuating downstream pressure. All valves are preset for 50 psi, but are field adjustable via the adjustment screw.
1/2" Hayward PBV Series PP Diaphragm Back Pressure Valve w/FPT x Threaded ends
Additional Information
| MPN | PBV3050TPE1 |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Diaphragm Valve |
| Style | Back Pressure |
| Series | PBV Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | Diaphragm Back Pressure Valve |
| Valve Size | 1/2" |
| Valve Connection Type | FPT x Threaded |
| Diaphragm Material | PTFE/EPDM |
| Material | PP - Polypropylene |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377303224 |
| Color | Gray |
| Installation Manual | Hayward PBV3050TPE1 Installation Manual |
| Technical Data | Hayward PBV3050TPE1 Technical Data |
