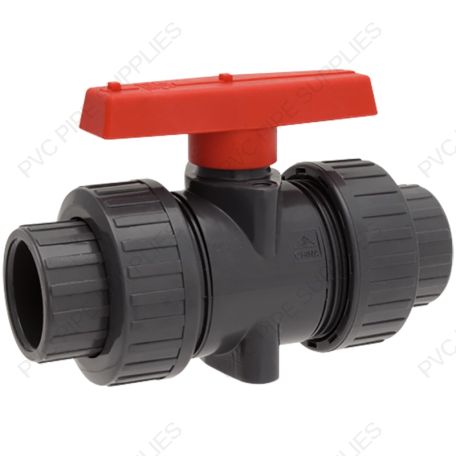

1/2" Hayward TBB Series True Union CPVC Ball Valve

SKU: TBB2005CPFG
Color: Light Gray
1/2" Hayward TBB Series True Union CPVC Ball Valve w/ Socket and Threaded ends, FPM O-rings

Details

TBB Series true union ball valves are offered in PVC, CPVC, PP and PVDF. O-rings are FPM or EPDM. Up to 2 inch sizes have socket and threaded end connections. All seats are PTFE.

Additional Information

MPN TBB2005CPFG
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series TBB Series
Valve Type True Union Ball Valve
Valve Size 1/2"
Valve Connection Type Socket and Threaded
Material CPVC
Seal Type Double O-Ring Stem
Seal Material FPM
Seat Material PTFE
Port Type Full
Max Pressure 225 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 48
UPC Code 0610377092135
Color Light Gray
Installation Manual PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond Hayward TBB2005CPFG Installation Manual
Technical Data PDF file icon image/svg+xml PDF file icon 08/10/2018 Adobe Systems CMetalCore Fuente del texto "PDF": Franklin Gothic Medium Cond Hayward TBB2005CPFG Technical Data
