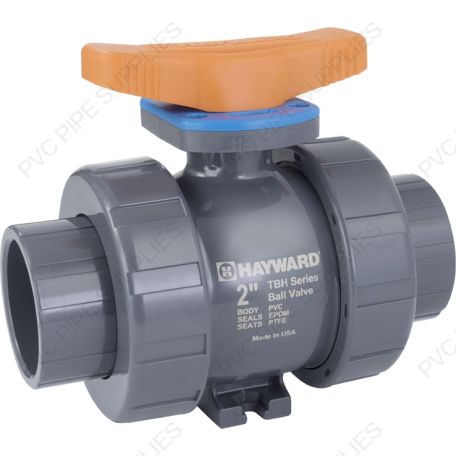

1/2" Hayward TBH Series True Union CPVC Ball Valve w/Socket and Threaded ends

SKU: TBH2050ASTE0000
Color: Light Gray

1/2" Hayward TBH Series True Union CPVC Ball Valve w/Socket and Threaded ends, EPDM O-rings

Details

Hayward's TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes.

The System2™ Sealing Technology utilizes the upstream seat as a backup to the downstream seat and enhances the sealing of the downstream seat. This insures longer life cycle and performance of the valve vs. conventional PTFE seats or seats with O-ring backing where uneven seat wear results in early failure mode.

Available in sizes 1/4" through 6” / DN15 - DN50 in PVC and CPVC materials, the TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock across all sizes and materials. All valves are assembled with silicone free lubricant. Lastly, the TBH is available with IPS or DIN/EN socket, threaded and flanged end connections.

Additional Information

MPN TBH2050ASTE0000
Inventory Type DS
Manufacturer Hayward
Type Ball Valve
Style True Union
Series TBH Series
Manufacturer Warranty 2 Year Warranty
Valve Type True Union Ball Valve
Valve Size 1/2"
Valve Connection Type Socket and Threaded
Material CPVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Seat Material Reversible PTFE
Port Type Full
Max Pressure 250 PSI (17.2 bar) @ 70° F (21° C)
Carton Qty 12
UPC Code 0610377350808
Color Light Gray
Ratings & Standards NSF/ANSI 61
Installation Manual
Technical Data
Dimensions Image
