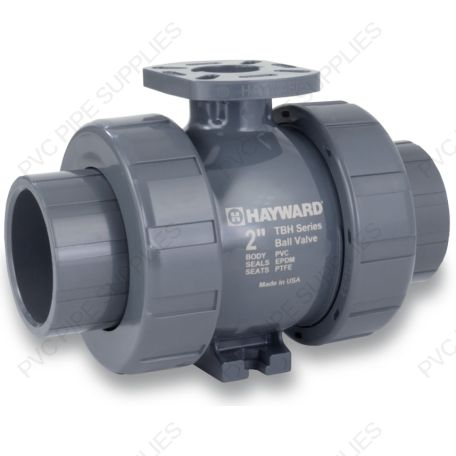

1/2" Hayward Actuator Ready TBH Series True Union CPVC Ball Valve
Hayward's TBH Series features a low maintenance design with its new patent pending System2™ Sealing Technology. Assisting users in protecting property and life, a standard integral lock-out feature secures onto the body of the valve. Actuator ready design with ISO 5211 pattern – on all sizes.
The System2™ Sealing Technology utilizes the upstream seat as a backup to the downstream seat and enhances the sealing of the downstream seat. This insures longer life cycle and performance of the valve vs. conventional PTFE seats or seats with O-ring backing where uneven seat wear results in early failure mode.
Available in sizes 1/4? through 2” / DN15 - DN50 in PVC and CPVC materials, the TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock across all sizes and materials. All valves are assembled with silicone free lubricant. Lastly, the TBH is available with IPS or DIN/EN socket, threaded and flanged end connections.
|Series||Actuator Ready TBH Series|
|Manufacturer Warranty||2 Year Warranty|
|Valve Type||True Union Ball Valve|
|Valve Connection Type||Flanged|
|Seal Type||Double O-Ring Stem|
|Seat Material||Reversible PTFE|
|Max Pressure||250 PSI (17.2 bar) @ 70° F (21° C)|
|Ratings & Standards||NSF/ANSI 61|
|Installation Manual||Hayward TBH2050A0FVK000 Installation Manual|
|Technical Data||Hayward TBH2050A0FVK000 Technical Data|
