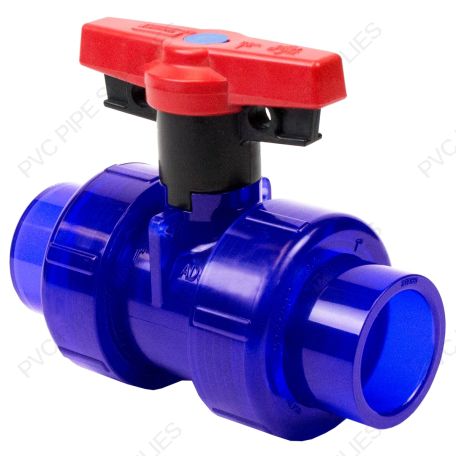

1/2" Spears PVC Low Extractable True Union Industrial Ball Valve w/Handle Lockout, FPT x Socket, FKM O-Ring
Details
1/2" Spears PVC Low Extractable True Union Industrial Ball Valve, FKM O-Ring, 1839-005BL
Additional Information
| MPN | 1839-005BL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Spears | ||||||||||||
| Type | Ball Valve | ||||||||||||
| Style | True Union | ||||||||||||
| Valve Type | True Union Industrial Ball Valve | ||||||||||||
| Valve Size | 1/2" | ||||||||||||
| Valve Connection Type | FPT x Socket | ||||||||||||
| Material | PVC LE | ||||||||||||
| Max Pressure | 235 PSI (10.3 bar) @ 70˚F (21˚C) | ||||||||||||
| UPC Code | 54211492154 | ||||||||||||
| Color | Blue | ||||||||||||
| Dimensions Image | |||||||||||||
| Dimensions |
|

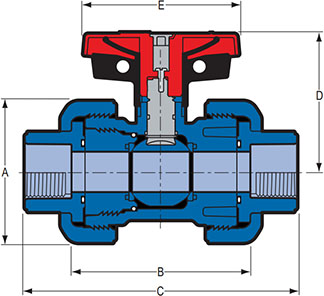

Dimensions
| A | 1-7/8 |
|---|---|
| B | 2-3/8 |
| C | 4-3/16 |
| D | 2-9/16 |
| E | 2-13/16 |
| Cv Values | 29 |
