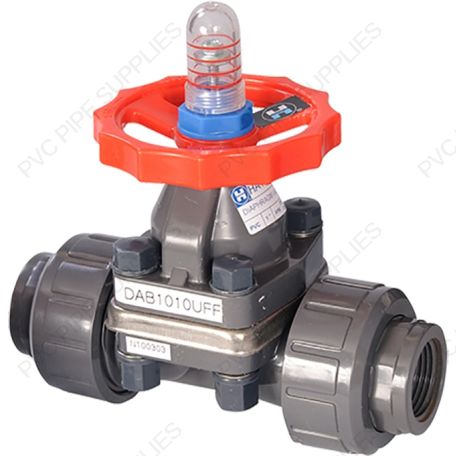

1" Hayward DAB Series True Union PVC Diaphragm Valve


1" Hayward DAB Series True Union PVC Diaphragm Valve w/Socket and Threaded ends, EPDM O-rings


The DAB Series Diaphragm Valves are available in sizes 1/2 inch to 6 inch, with PVC, CPVC, PP and PVDF materials. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visable beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic or electric actuation.

Inventory Type DS
Manufacturer Hayward
Type Flow Control Valve
Style True Union
Series DAB Series
Valve Type True Union Diaphragm Valve
Valve Size 1"
Valve Connection Type Socket and Threaded
Diaphragm Material EPDM
Material PVC
Seal Type Double O-Ring Stem
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377087056
Installation Manual Hayward DAB1010UEE Installation Manual
Technical Data Hayward DAB1010UEE Technical Data
Dimensions Image Hayward DAB1010UEE Drawing
