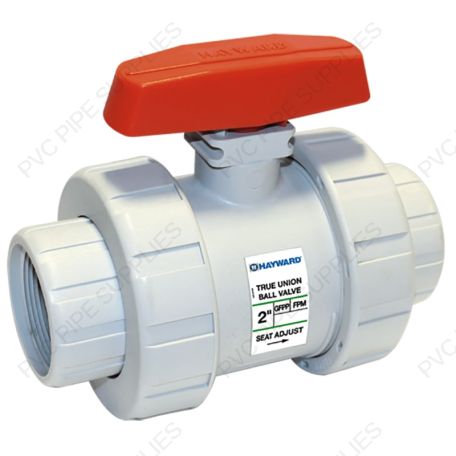

1" Hayward TB Series True Union GFPP Ball Valve w/Threaded ends
Main image
Click to view image in fullscreen
![]()
SKU:
TB4P100T
Color:
White
1" Hayward TB Series True Union GFPP Ball Valve w/ Threaded ends, FPM O-rings
$119.99
Details
TB Series true union ball valves are offered in PVC, CPVC and the new Platinum GFPP. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. A trigger style lockout handle is an option. All valves are assembled with silicone free lubricant.
1" Hayward TB Series True Union GFPP Ball Valve w/ Threaded ends, FPM O-rings
Additional Information
| MPN | TB4P100T |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | True Union |
| Series | TB Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | True Union Ball Valve |
| Valve Size | 1" |
| Valve Connection Type | Threaded |
| Material | GFPP |
| Seal Type | Double O-Ring Stem |
| Seal Material | FPM |
| Seat Material | Reversible PTFE |
| Port Type | Full |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377196789 |
| Color | White |
| Installation Manual | Hayward TB4P100T Installation Manual |
| Technical Data | Hayward TB4P100T Technical Data |
