2" AcuFlow Flow Meter with CPVC Valve Body and Check Valve (10-110 GPM)
Main image
Click to view image in fullscreen
calcActive())">
SKU:
AF-2
AcuFlow™ for 2" schedule 40 pipe with GPM & LMP scale and check valve function
$166.00
Details
AcuFlow™ is a revolutionary, patented solution for accurate and reliable flow and velocity rate measurement in fresh, gray and potable water applications. Using a design based on "mass flow" principles, AcuFlow™ provides many benefits that include:
- Ease of installation with zero to minimal straight pipe and no calibration required
- Installation flexibility that allows orientation in any position, e.g., horizontal, vertical, or even upside-down
- Long life without sticking floats or paddle wheels
- 15 year design life, 3 year warranty
- Combined Flow Meter and Check Valve for models AF-15, AF-2, and AF-25
- User upgradeable to include Digital functionality (AF-D and AF-D-PM)
- Manufactured in the USA
Additional Information
MPN | AF-2 |
---|---|
Inventory Type | DS |
Manufacturer | H2flow Controls |
Type | Flow Meter |
Schedule | Schedule 40 |
Flow Meter Size Summary | 2" Schedule 40 Pipe |
Flow Meter Body Material | CPVC |
Flow Meter O-Ring Material | Viton |
Material | CPVC |
Max Pressure | 125 PSI |
Maximum Temperature | 140° F (60° C) |
Minimum Temperature | 32° F (0° C) |
Flow Range | 10-110 GPM |
Accuracy | +/- 2% |
Application State | Liquid |
Brochure | H2flow Controls AF-2 Brochure |
Installation Manual | H2flow Controls AF-2 Manual |

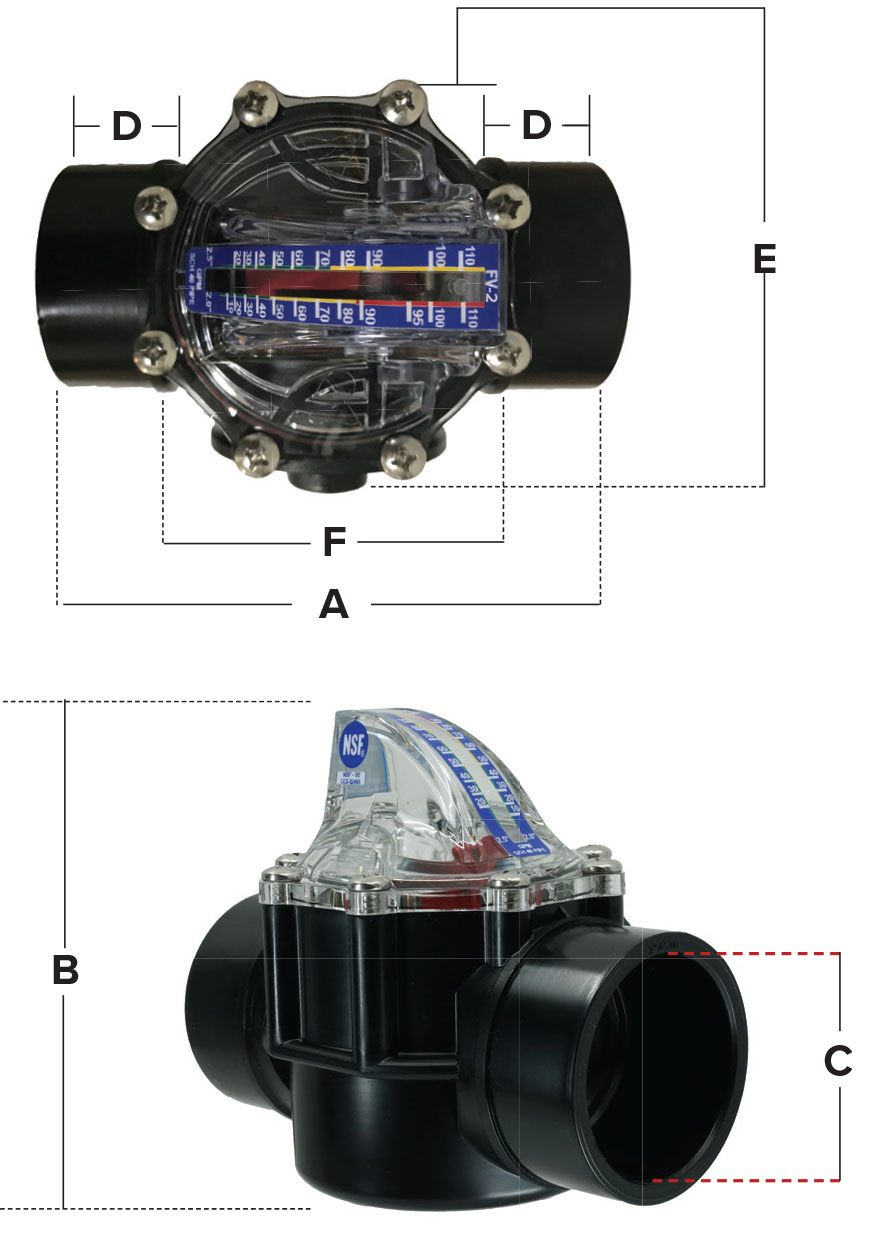

Dimensions Image |
