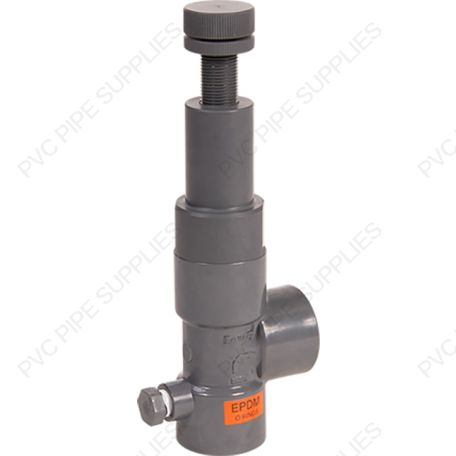

2" Hayward RV Series Piston PVC Pressure Relief Valve w/Threaded ends

SKU: RV1200TE
Color: Gray
2" Hayward RV Series Piston PVC Pressure Relief Valve w/Threaded ends, EPDM O-rings

Details

Piston style Pressure Relief Valves are ideal for high viscosity fluids. Hayward Pressure Relief Valves protect piping system components from damage due to overpressurization. The valves work by sensing system pressure. When the system pressure exceeds the set pressure, the force of the excess pressure moves the valve piston off its seat to relieve the excess pressure and diverts some of the flow out the discharge port. Available in 1/2 inch to 2 inch sizes. PVC or CPVC, with threaded or flanged ends. Metric threads available upon request. Choice of FPM or EPDM Seals. Can be set from 5 to 75 psi.

Additional Information

MPN RV1200TE
Inventory Type DS
Manufacturer Hayward
Type Pressure Relief Valve
Style Piston
Series RV Series
Valve Type Piston Pressure Relief Valve
Valve Size 2"
Valve Connection Type Threaded
Material PVC
Seal Type Double O-Ring Stem
Seal Material EPDM
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377688987
Color Gray
Installation Manual
Technical Data
Dimensions Image
