- 2" Hayward TB Series True Union GFPP Ball Valve w/Threaded ends

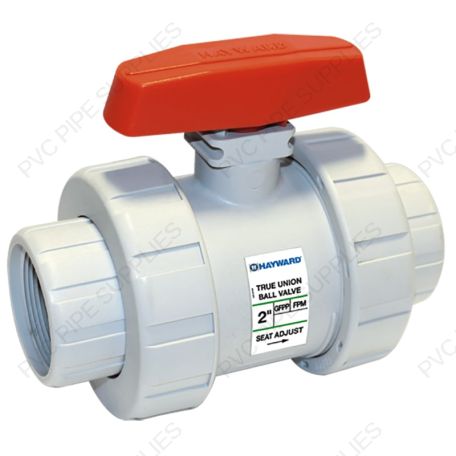

2" Hayward TB Series True Union GFPP Ball Valve w/Threaded ends
Main image
Click to view image in fullscreen

calcActive())">
SKU:
TB4P200TE
Color:
White
2" Hayward TB Series True Union GFPP Ball Valve w/ Threaded ends, EPDM O-rings
$229.99
Details
TB Series true union ball valves are offered in PVC, CPVC and the new Platinum GFPP. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. A trigger style lockout handle is an option. All valves are assembled with silicone free lubricant.
2" Hayward TB Series True Union GFPP Ball Valve w/ Threaded ends, EPDM O-rings
Additional Information
MPN | TB4P200TE |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Ball Valve |
Style | True Union |
Series | TB Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | True Union Ball Valve |
Valve Size | 2" |
Valve Connection Type | Threaded |
Material | GFPP |
Seal Type | Double O-Ring Stem |
Seal Material | EPDM |
Seat Material | Reversible PTFE |
Port Type | Full |
Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
Carton Qty | 1 |
UPC Code | 0610377196857 |
Color | White |
Installation Manual | Hayward TB4P200TE Installation Manual |
Technical Data | Hayward TB4P200TE Technical Data |
