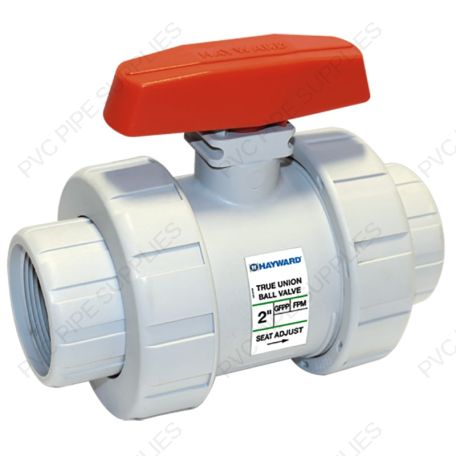

2" Hayward TB Series True Union GFPP Ball Valve w/Flanged ends
                Main image
                Click to view image in fullscreen









 calcActive())">








                        SKU:


                        TB4P200F



                        Color:


                        White

                                                                                                        2" Hayward TB Series True Union GFPP Ball Valve w/ Flanged ends, FPM O-rings






                        $559.99




                    Details
TB Series true union ball valves are offered in PVC, CPVC and the new Platinum GFPP. O-rings are FPM or EPDM and seats are PTFE. Up to 2 inch sizes have socket and threaded end connections. A trigger style lockout handle is an option. All valves are assembled with silicone free lubricant.
    2" Hayward TB Series True Union GFPP Ball Valve w/ Flanged ends, FPM O-rings
    Additional Information
| MPN | TB4P200F |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Ball Valve |
| Style | True Union |
| Series | TB Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | True Union Ball Valve |
| Valve Size | 2" |
| Valve Connection Type | Flanged |
| Material | GFPP |
| Seal Type | Double O-Ring Stem |
| Seal Material | FPM |
| Seat Material | Reversible PTFE |
| Port Type | Full |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| Color | White |
| Installation Manual | Hayward TB4P200F Installation Manual |
| Technical Data | Hayward TB4P200F Technical Data |
