2" Hayward ECP Series Actuated True Union CPVC Ball Valve
Main image
Click to view image in fullscreen
calcActive())">
SKU:
ECPTBH220STV
Color:
Light Gray

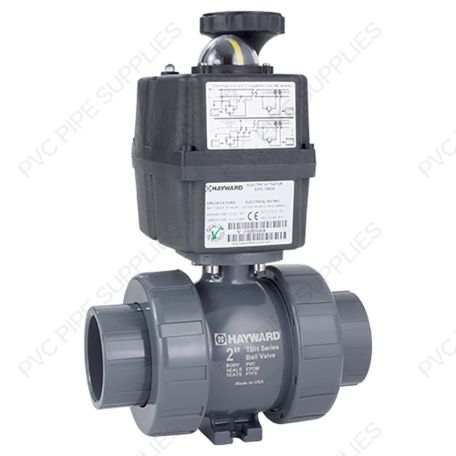

2" Hayward ECP Series Actuated True Union CPVC Ball Valve w/ Socket and Threaded ends, FPM O-rings
$952.99
Details
High performance ECP Series 120/230 VAC electric actuator with four auxiliary limit switches, mounted to a TBH Series true union ball valve. Valve has socket and threaded end connections.
- Direct mount to actuators with ISO 5211 mounting pads
- Consistent valve torque due to System2™ Sealing Technology
- Actuator Ready valve priced lower than valve with handle and lock plate
- ISO 5211 couplings available in 9mm, 11mm and 14mm
Additional Information
MPN | ECPTBH220STV |
---|---|
Inventory Type | DS |
Manufacturer | Hayward |
Type | Ball Valve |
Style | True Union |
Series | ECP Series |
Manufacturer Warranty | 2 Year Warranty |
Valve Type | True Union Ball Valve |
Valve Size | 2" |
Valve Connection Type | Socket and Threaded |
Material | CPVC |
Seal Type | Double O-Ring Stem |
Seal Material | FPM |
Seat Material | PTFE |
Actuation Type | Actuated |
Actuator Voltage | 120/230 VAC |
Actuator Cycle Time | 2.5 Second, 90° |
Carton Qty | 1 |
UPC Code | 0610377357869 |
Color | Light Gray |
Ratings & Standards | NSF/ANSI 61 |
Actuator Ratings & Standards | UL/CSA Listed Motor |
Installation Manual | Hayward ECPTBH220STV Installation Manual |
Technical Data | Hayward ECPTBH220STV Technical Data |
