2" PVC Low Extractable Flange Socket
SKU:
854-020BL
Color:
Blue

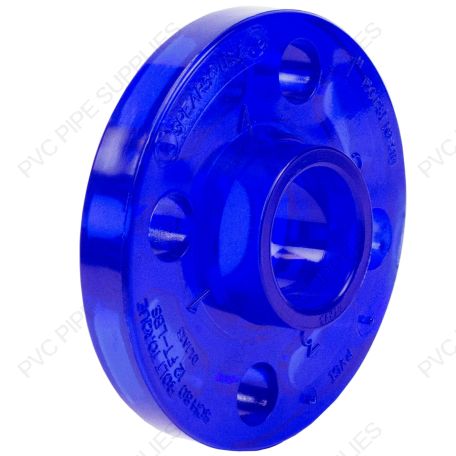

2" Spears PVC Low Extractable Van Stone Flange Socket, 854-020BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
$93.19
Details
2" Spears PVC Low Extractable Van Stone Flange Socket, 854-020BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Additional Information
| MPN | 854-020BL |
|---|---|
| Inventory Type | N100 |
| Type | Flange |
| Fitting Type | Van Stone Flange |
| Brand | Low Extractable |
| Size | 2" |
| Connection Type | Socket |
| Outer Diamter (in.) | 6" |
| Bolt Circle (in.) | 5/8" |
| Bolt Hole Diameter (in.) | 4-3/4" |
| Number of Bolt Holes | 4 |
| Material | PVC |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| UPC Code | 054211837887 |
| Color | Blue |
| Technical Data | Spears 854-020BL Technical Data |
| Dimensions Image | |
| Dimensions | <table> <tr> <td>L</td> <td>1-11/16"</td> </tr> <tr> <td>M</td> <td>2-15/16"</td> </tr> <tr> <td>N</td> <td>3/16"</td> </tr><tr> <td>R</td> <td>13/16"</td> </tr></table> |
