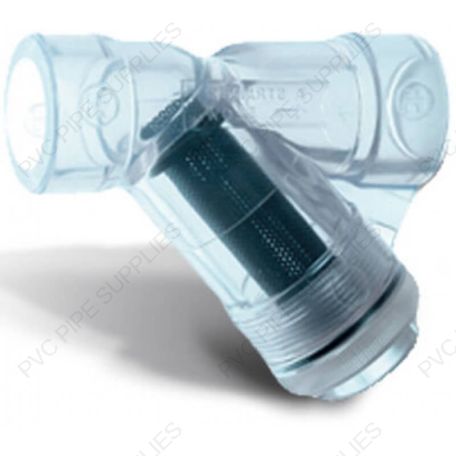

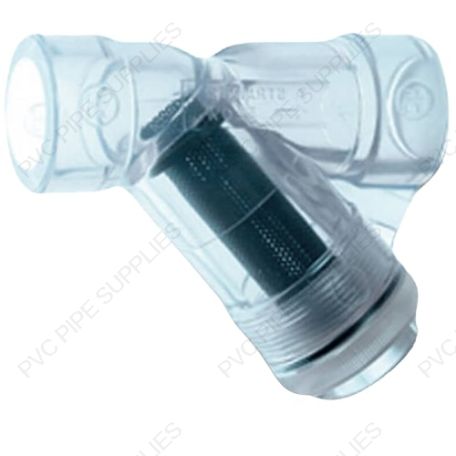

3/4" Hayward YS Series PVC Y Strainer w/Socket ends

SKU: YS00075S



Hayward Y Strainers protect piping system components from damage caused by dirt or debris in the process media. They cost less than other types of strainers and are lightweight and very compact. Because they can often be supported by the pipeline alone, they work in applications where other strainers cannot.

150 psi at 70°F Non-Shock

All Y-Strainers have an FPM o-ring seal and are assembled with silicone free lubricant. Each Y-Strainer includes one 1/32" perforated plastic screen. (Stainless steel screens are 1/32" perforation.)

SKU YS00075S
MPN YS00075S
Inventory Type DS
Manufacturer Hayward
Type Y Strainer
Series YS Series
Strainer Size 3/4"
Strainer Screen Size 1/32"
Strainer Connection Type Socket
Material PVC
Seal Type Double O-Ring Stem
Color Clear
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 24
UPC Code 0610377513005
Installation Manual Hayward YS00075S Installation Manual
Technical Data Hayward YS00075S Technical Data
Dimensions Image Hayward YS00075S Drawing
