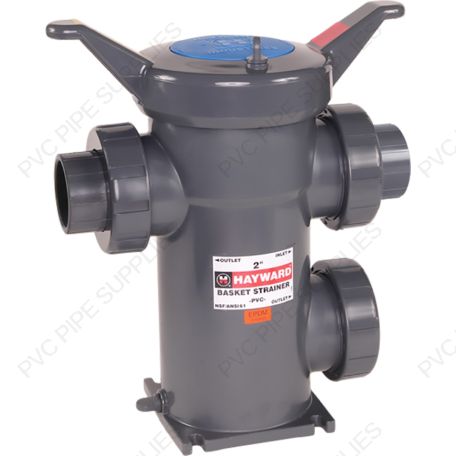

3" Hayward SB Series PVC Simplex Basket Strainer w/Threaded ends


Strainer price includes one plastic basket. If your application requires a mesh basket, please call customer service to get your updated price for the strainer / basket combo unit



When pipeline system components require protection from dirt and debris and the line can be shut down for basket cleaning, a Hayward All Plastic Simplex Basket Strainer is the ideal choice. Unwanted particles are removed as the process media passes through a perforated strainer basket contained inside the strainer body. The basket traps the unwanted material while allowing the process media to flow freely.

Available in sizes 1/2 inch to 4 inch in PVC, CPVC, GFPP Black, GFPP Platinum and Eastar® materials. Seals are FPM or EPDM with either socket, threaded or flanged end connections. Each strainer comes with a standard plastic basket. Other basket materials available such as SS316, Monel and Hastelloy available upon request. See Basket Replacements.

Inventory Type DS
Manufacturer Hayward
Type Basket Strainer
Style Simplex
Series SB Series
Strainer Size 3"
Strainer Connection Type Threaded
Material PVC
Seal Material EPDM
Seal Type Double O-Ring Stem
Color Gray
Max Pressure 150 PSI (10.3 bar) @ 70˚F (21˚C)
Carton Qty 1
UPC Code 0610377820615
Ratings & Standards NSF/ANSI 61
Installation Manual Hayward SB1300TE Installation Manual
Technical Data Hayward SB1300TE Technical Data
Dimensions Image Hayward SB1300TE Drawing
