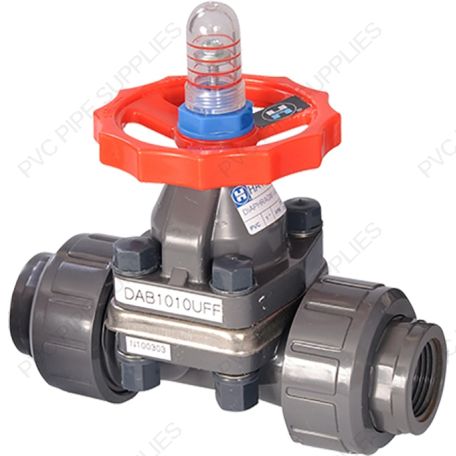

The DAB Series Diaphragm Valves are available in sizes 1/2 inch to 6 inch, with PVC, CPVC, PP and PVDF materials. Possible end connections are true-union socket or threaded and flanged ends. All DAB Series feature a highly visable beacon indicator. Possible diaphragm materials are EPDM, FPM and PTFE. PVDF vapor barrier available upon request for EPDM and PTFE diaphragms. The DAB Series are also available with pneumatic or electric actuation.
| SKU | DAB2007UEE |
|---|---|
| MPN | DAB2007UEE |
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Flow Control Valve |
| Style | True Union |
| Series | DAB Series |
| Valve Type | True Union Diaphragm Valve |
| Valve Size | 3/4" |
| Valve Connection Type | Socket and Threaded |
| Diaphragm Material | EPDM |
| Material | CPVC |
| Seal Type | Double O-Ring Stem |
| Color | Light Gray |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377087346 |
| Installation Manual | Hayward DAB2007UEE Installation Manual |
| Technical Data | Hayward DAB2007UEE Technical Data |
| Dimensions Image | Hayward DAB2007UEE Drawing |
