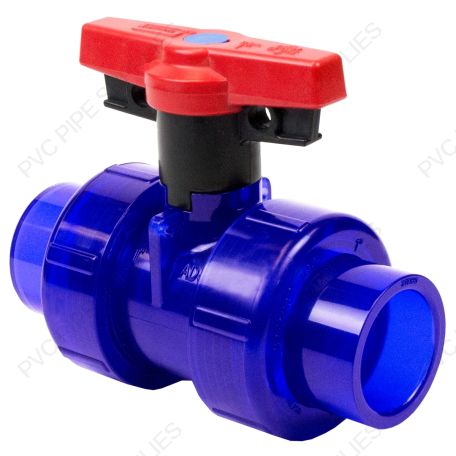

3/4" Spears PVC Low Extractable True Union Industrial Ball Valve, FPT x Socket, EPDM O-Ring
Details
3/4" Spears PVC Low Extractable True Union Industrial Ball Valve, EPDM O-Ring, 1829-007BL
Additional Information
| MPN | 1829-007BL | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Spears | ||||||||||||
| Type | Ball Check Valve | ||||||||||||
| Style | True Union | ||||||||||||
| Valve Type | True Union Industrial Ball Check Valve | ||||||||||||
| Valve Size | 3/4" | ||||||||||||
| Valve Connection Type | FPT x Socket | ||||||||||||
| Material | PVC LE | ||||||||||||
| Max Pressure | 235 PSI (10.3 bar) @ 70˚F (21˚C) | ||||||||||||
| UPC Code | 54211492147 | ||||||||||||
| Color | Blue | ||||||||||||

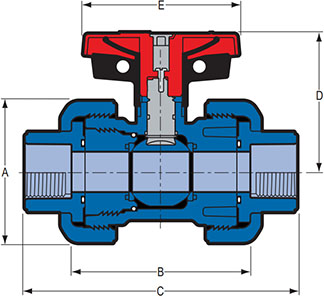

| Dimensions Image | |||||||||||||
| Dimensions |
|
Dimensions
| A | 2-1/4 |
|---|---|
| B | 2-3/4 |
| C | 4-3/4 |
| D | 2-7/8 |
| E | 3-3/8 |
| Cv Values | 63 |
