3/4" PVC Low Extractable Flange Socket
Details

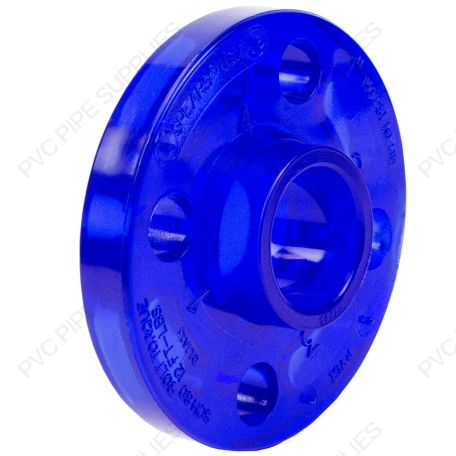

3/4" Spears PVC Low Extractable Van Stone Flange Socket, 854-007BL
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Spears Low-Extractable Piping System offer unique advantages for many ultra-pure water applications:
-Advanced Low-Extractable material significantly reduces leachable contamination compared to conventional PVC and other piping materials
-Exceptionally smooth interior walls reduce particle contaminants
-Fast, reliable installation with simple, inexpensive joining methods
-Good chemical/corrosion resistance, high impact strength, Low thermal conductivity
-Low maintenance
-Cost effective
Additional Information
| MPN | 854-007BL | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Inventory Type | N25 | ||||||||
| Type | Flange | ||||||||
| Fitting Type | Van Stone Flange | ||||||||
| Size | 3/4" | ||||||||
| Connection Type | Socket | ||||||||
| Outer Diamter (in.) | 3-7/8" | ||||||||
| Bolt Circle (in.) | 1/2" | ||||||||
| Bolt Hole Diameter (in.) | 2-3/4" | ||||||||
| Number of Bolt Holes | 4 | ||||||||
| Material | PVC | ||||||||
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) | ||||||||
| UPC Code | 054211837849 | ||||||||
| Color | Blue | ||||||||
| Technical Data | Spears 854-007BL Technical Data | ||||||||
| Dimensions Image | |||||||||
| Dimensions |
|
Documents

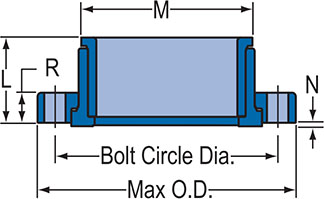

Dimensions
| L | 1-1/8" |
|---|---|
| M | 1-7/16" |
| N | 5/32" |
| R | 9/16" |
