3/8" Hayward NVA Series PVDF Needle Valve w/Threaded ends, FPM O-rings
Needle Valves are used for accurate metering of fluids. Turning the thumbwheel moves a tapered piston into the PTFE seat to control the flow down to a few drops per minute. Precision-molded, fine-pitched stem threads permit this very fine metering flow control.

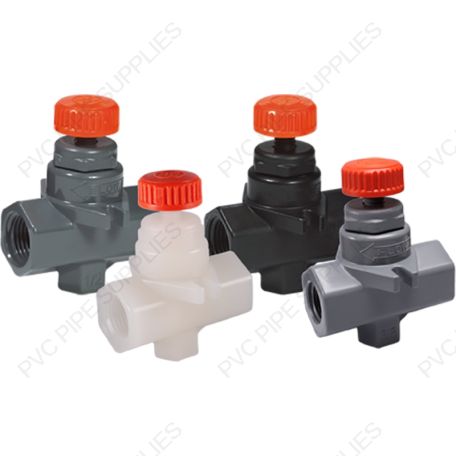

Available in PVC, CPVC, GFPP and PVDF materials and construction. The NVA Series features an integrated stem with a PTFE seat for superior control, purity and performance. Sizes range from 1/4 inch (DN8) to 1/2 inch (DN10). FPM Seals are standard. All valves carry a pressure rating of 150 psi / 10 bar Non-Shock at 70°F.
|Type||Flow Control Valve|
|Manufacturer Warranty||2 Year Warranty|
|Valve Type||Needle Valve|
|Valve Connection Type||Threaded|
|Seal Type||Double O-Ring Stem|
|Max Pressure||150 PSI (10.3 bar) @ 70˚F (21˚C)|
|Installation Manual||Hayward NVA5037T Installation Manual|
|Technical Data||Hayward NVA5037T Technical Data|
