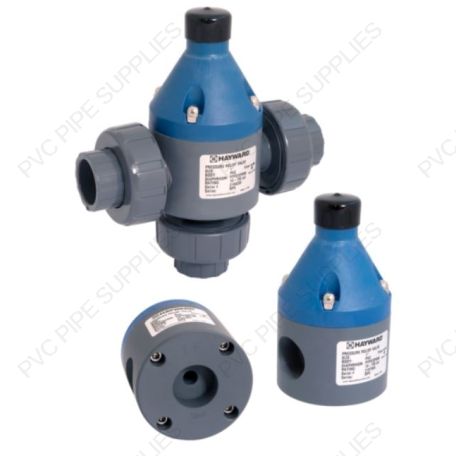

3/8" Hayward RPV Series PP Diaphragm Pressure Relief Valve w/FPT x Threaded ends
Main image
Click to view image in fullscreen
![]()
SKU:
RPV3037TPE1
Color:
Gray
3/8" Hayward RPV Series PP Diaphragm Pressure Relief Valve w/FPT x Threaded ends
$304.99
Details
All Thermoplastic diaphragm Pressure Relief Valve for protecting against over-pressure in Chemical Feed Systems. All valves are preset at 50 psi, however they are field adjustable via the adjustment screw.
3/8" Hayward RPV Series PP Diaphragm Pressure Relief Valve w/FPT x Threaded ends
Additional Information
| MPN | RPV3037TPE1 |
|---|---|
| Inventory Type | DS |
| Manufacturer | Hayward |
| Type | Diaphragm Valve |
| Style | Pressure Relief |
| Series | RPV Series |
| Manufacturer Warranty | 2 Year Warranty |
| Valve Type | Diaphragm Pressure Relief Valve |
| Valve Size | 3/8" |
| Valve Connection Type | FPT x Threaded |
| Diaphragm Material | PTFE/EPDM |
| Material | PP - Polypropylene |
| Max Pressure | 150 PSI (10.3 bar) @ 70˚F (21˚C) |
| Carton Qty | 1 |
| UPC Code | 0610377303583 |
| Color | Gray |
| Installation Manual | Hayward RPV3037TPE1 Installation Manual |
| Technical Data | Hayward RPV3037TPE1 Technical Data |
